Engine Oil Flow Diagram

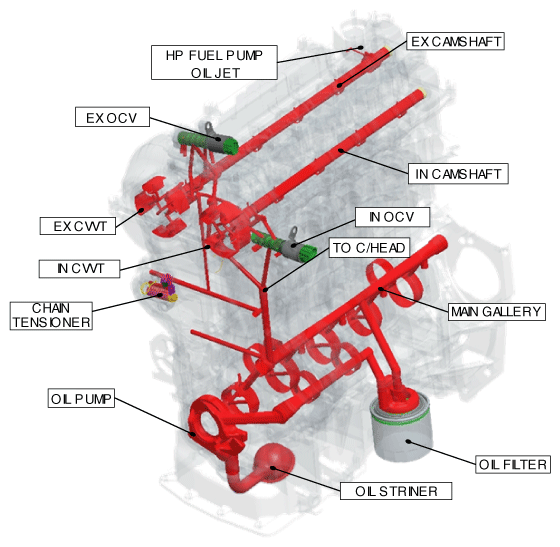

Fig 1: Engine Oil Flow (1 Of 2)
G11949835Courtesy of KIA MOTORS AMERICA, INC.

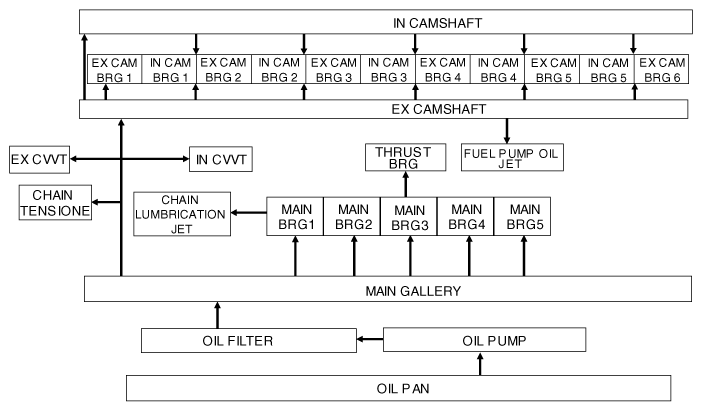

Fig 2: Engine Oil Flow (2 Of 2)
G11949836Courtesy of KIA MOTORS AMERICA, INC.
