Components And Components Location: Components

WARNING: This page is about a different variant/trim than selected.

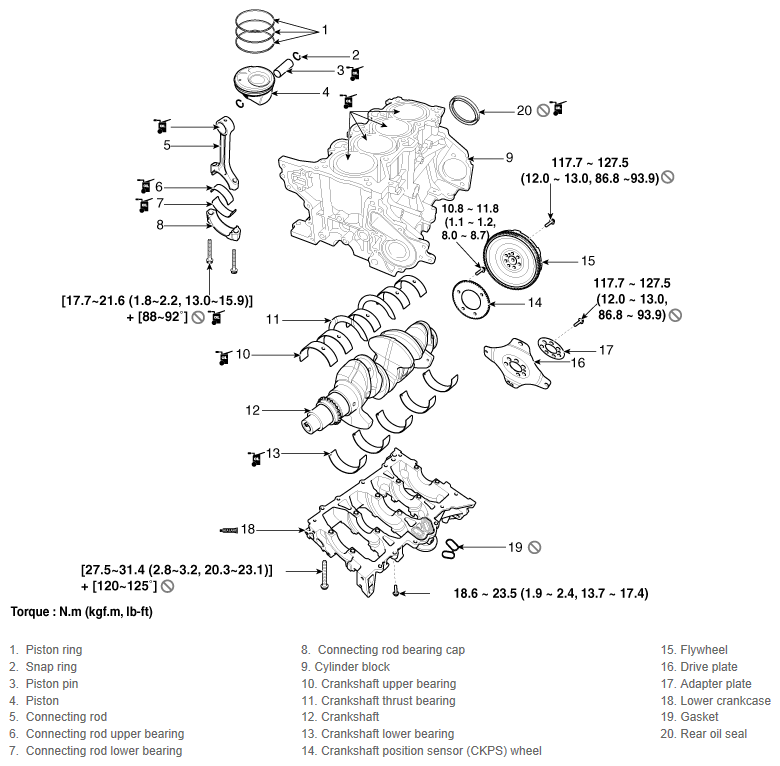

Fig 1: Cylinder Block With Torque Specifications
G11953028Courtesy of KIA MOTORS AMERICA, INC.
