Electric Water Pump Control

Ignition "OFF", Connect GDS to Data Link Connector (DLC).
Shift the gear to the P position & Ignition "ON" (Power Button LED "Red"), and select the "Vehicle S/W Management" mode.
Perform "Electric Water Pump Control" from the additional function.

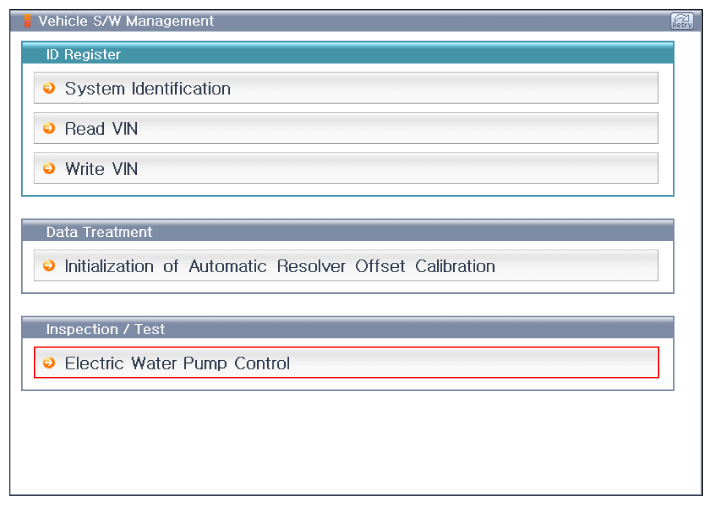

Fig 1: Scantool Display - Normal Electric Water Pump Operation Procedure In Vehicle S/W Management
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Scantool Display - Normal Electric Water Pump Operation Procedure
Courtesy of KIA MOTORS AMERICA, INC.

Fig 3: Scantool Display - Normal Electric Water Pump Operation Procedure (In Progress)
Courtesy of KIA MOTORS AMERICA, INC.

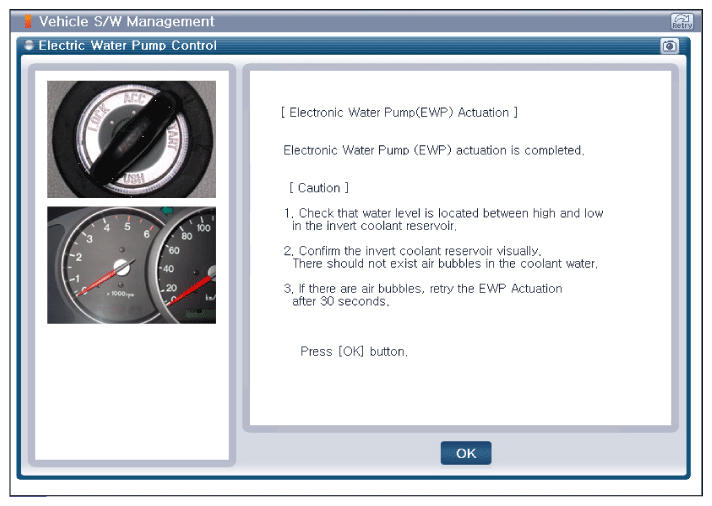

Fig 4: Scantool Display - Normal Electric Water Pump Operation Procedure (Completed)
Courtesy of KIA MOTORS AMERICA, INC.
Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
