Monitor GDS status

  1. Connect GDS to Data Link Connector (DLC).
  2. Ignition "ON" (Power Button LED "Red")
  3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.
  4. If the DTC P0A1B status is history, erase the DTC and re-check for MIL ON, if the DTC (Fig 1) status is present, select "Freeze Frame" and monitor "Information Code".
  5. Perform applicable repair procedure for "Information Code" and perform following procedure.

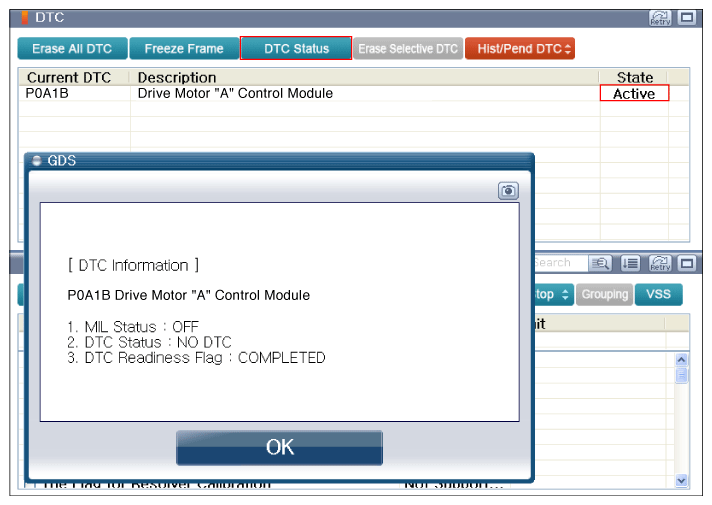

    Fig 1: Scantool Display - Diagnostic Trouble Code (DTC)
    G11947074Courtesy of KIA MOTORS AMERICA, INC.
    Fig 2: Scantool Display - Freeze Frame (Information Code 301)
    G11947075Courtesy of KIA MOTORS AMERICA, INC.
    Fig 3: Scantool Display - Freeze Frame (Information Code 302)
    G11947076Courtesy of KIA MOTORS AMERICA, INC.
    Fig 4: Scantool Display - Freeze Frame (Information Code 303)
    G11947077Courtesy of KIA MOTORS AMERICA, INC.

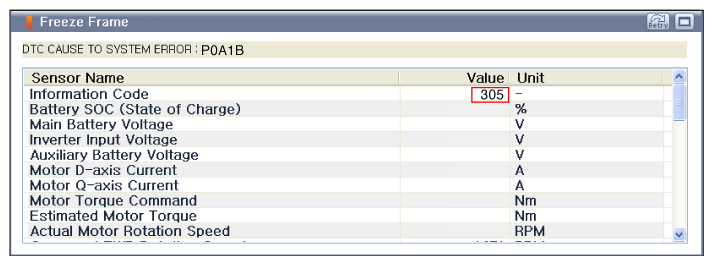

    Fig 5: Scantool Display - Freeze Frame (Information Code 305)
    G11947078Courtesy of KIA MOTORS AMERICA, INC.
    Fig 6: Scantool Display - Freeze Frame (Information Code 306)
    G11947079Courtesy of KIA MOTORS AMERICA, INC.

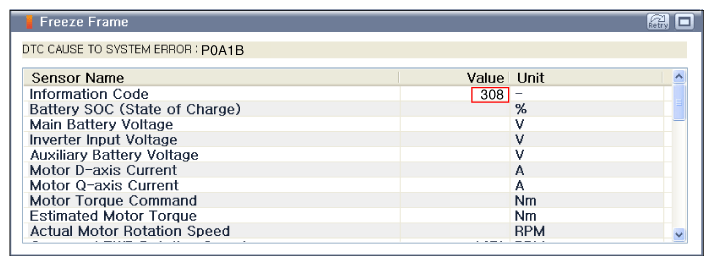

    Fig 7: Scantool Display - Freeze Frame (Information Code 308)
    G11947080Courtesy of KIA MOTORS AMERICA, INC.
    Fig 8: Scantool Display - Freeze Frame (Information Code 310)
    G11947081Courtesy of KIA MOTORS AMERICA, INC.
    Fig 9: Scantool Display - Freeze Frame (Information Code 311)
    G11947082Courtesy of KIA MOTORS AMERICA, INC.
    Fig 10: Scantool Display - Freeze Frame (Information Code 313)
    G11947083Courtesy of KIA MOTORS AMERICA, INC.
    Fig 11: Scantool Display - Freeze Frame (Information Code 314)
    G11947084Courtesy of KIA MOTORS AMERICA, INC.
    Fig 12: Scantool Display - Freeze Frame (Information Code 315)
    G11947085Courtesy of KIA MOTORS AMERICA, INC.
    Information Code Check Items
    301 Inside of EPCU
    302
    303
    305
    306
    308
    310
    311
    313
    314
    315
  6. Is DTC status displayed as Present?

    YES

    • Carefully re-do this troubleshooting guide steps.
    • Problem still occurs, replace, EPCU and then go to, "Initialization of Automatic Resolver Offset Calibration" procedure.

    NO

    • Fault is intermittent caused by poor contact in the sensor's and/or EPCU's connector or was repaired and EPCU memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
      CAUTION: Perform "Initialization of Automatic Resolver Offset Calibration" with GDS in case EPCU or motor is replaced or repaired, and then operate Electric Water Pump (EWP) to recirculate and refill coolant.
