DTC B1020-52: TPMS Missing Error - Without TPMS Unit Or Connector Fault
>>
Components Location
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Components Location

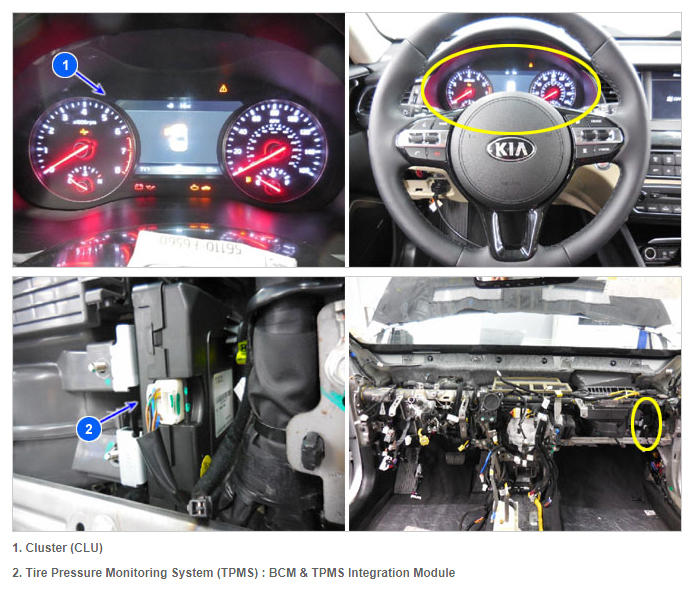

Fig 1: Cluster (CLU) & Tire Pressure Monitoring System (TPMS) : BCM & TPMS Integration Module Components Location
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
