Repair Procedures: Removal

Disconnect the negative (-) battery terminal.
Remove the rear bumper cover.
(Refer to Body - "REAR BUMPER COVER ")
Disconnect the BSD connector (A).

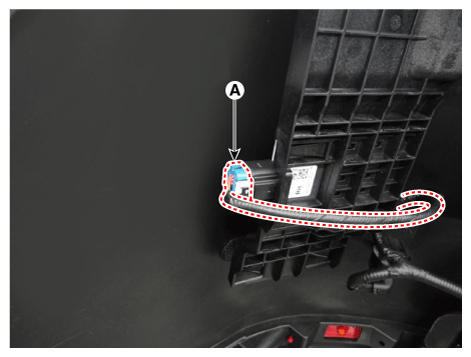

Fig 1: Locating BSD Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the BSD unit (A) after loosening the mounting screws and clip.
CAUTION: Be careful when removing the blind spot detection unit. The bracket may break off from the bumper.

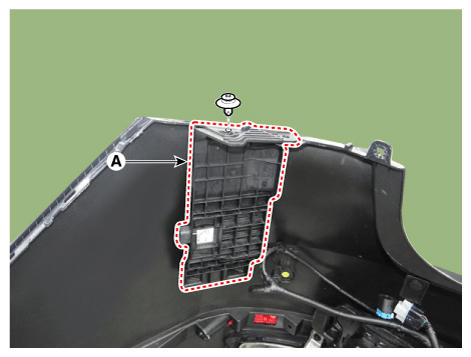

Fig 2: Removing BSD Unit Mounting Screws And Clip (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

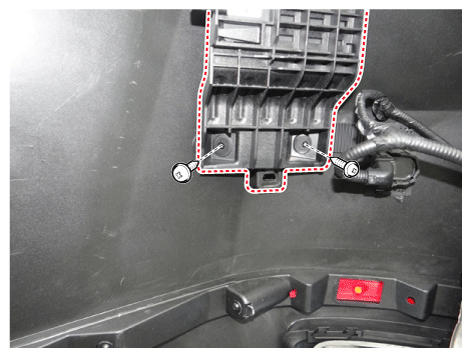

Fig 3: Removing BSD Unit Mounting Screws And Clip (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: When removing the BSD unit, be careful not to damage the bracket of BSD.
