Monitor KDS/GDS Data

Ignition "OFF"
Connect KDS/GDS to Data Link Connector (DLC).
Ignition "ON" & Engine "ON"
Select "Engine" system
Monitor engine status parameters in "Current Data" with KDS/GDS.
Specification : Refer to Fig 2 below

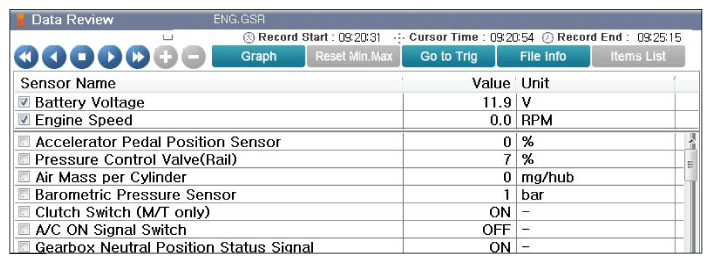

Fig 1: Scantool Display - Engine Current Data At Ignition ON & Engine OFF
Courtesy of KIA MOTORS AMERICA, INC.

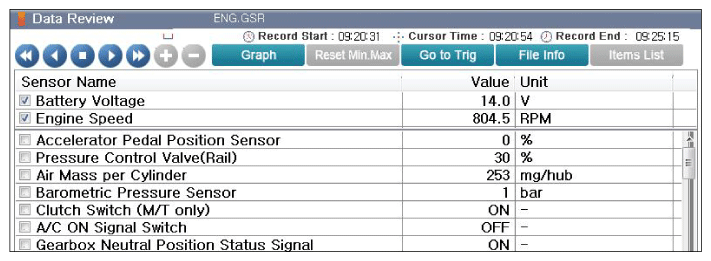

Fig 2: Scantool Display - Engine Current Data At Engine Idle
Courtesy of KIA MOTORS AMERICA, INC.
Is the parameter displayed within specification?
YES
- Go to "WIRING INSPECTION " procedure.
NO
- Check for CAN related fault in engine system.
- If CAN related fault is present in engine system, perform applicable troubleshooting steps.
- Carefully re-do this troubleshooting guide steps.
