Monitor DTC Status
- Connect KDS/GDS to Data Link Connector (DLC).
- Ignition "ON"

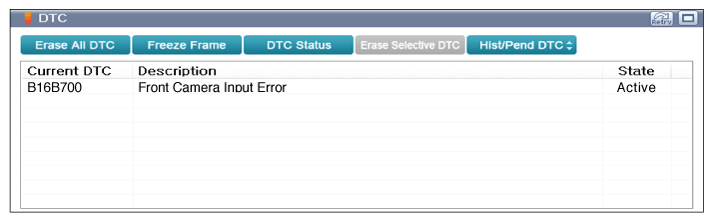

- Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
- Is DTC status displayed as present?
YES
- Go to "MONITOR KDS/GDS DATA " procedure.
NO
- Go to "VERIFICATION OF REPAIR " procedure.
