Components And Components Location: Components

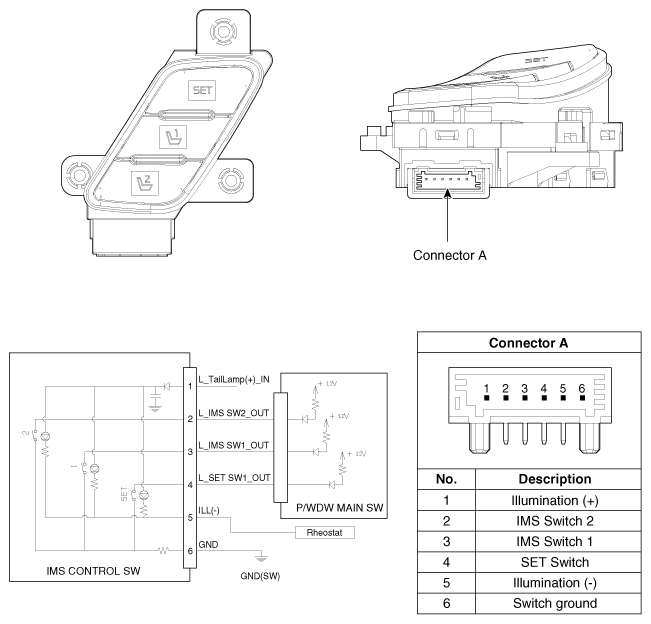

Fig 1: Locating Memory Power Seat Switch With Connector End View
G12298533Courtesy of KIA MOTORS AMERICA, INC.
