Circuit Diagram

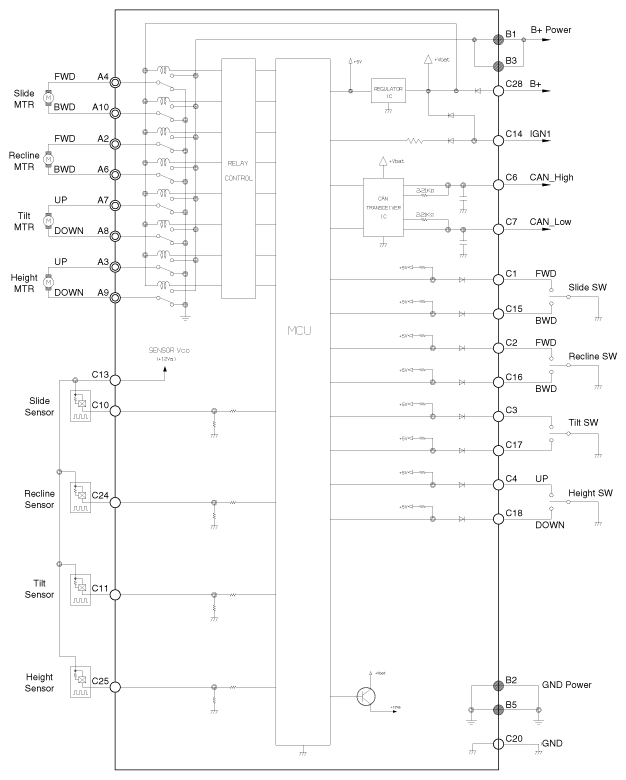

Fig 1: Memory Power Seat Unit Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
