[Longitudinal G Sensor Calibration]

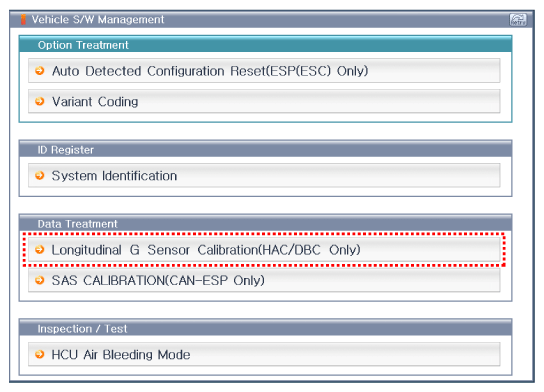

Fig 1: Scantool Display - Vehicle S/W Management (Longitudinal G Sensor Calibration)
G12294541Courtesy of KIA MOTORS AMERICA, INC.

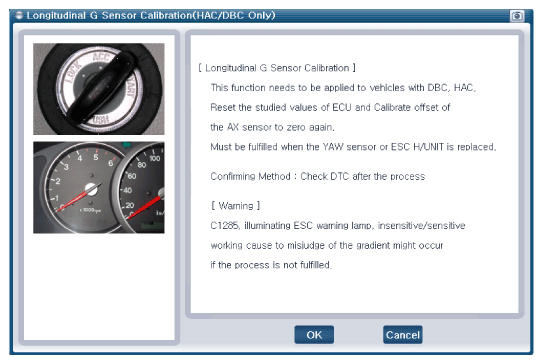

Fig 2: Scantool Display - Longitudinal G Sensor Calibration
G12294542Courtesy of KIA MOTORS AMERICA, INC.
