[Trip + ACC]

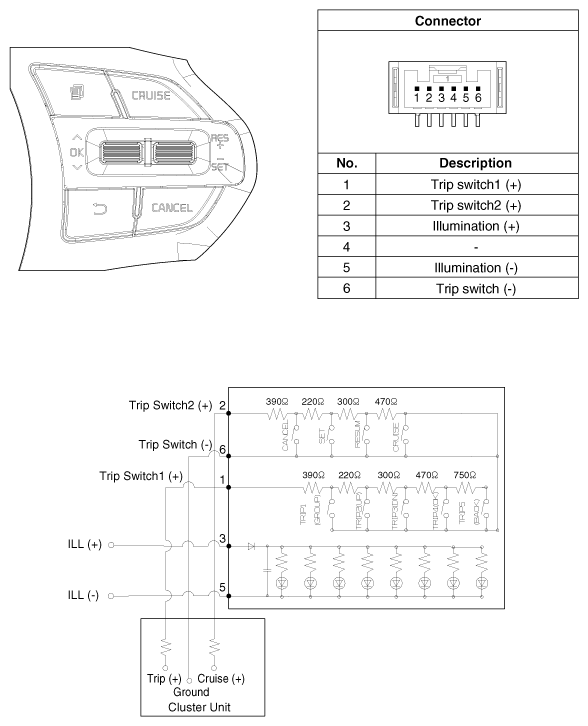

Fig 1: Advanced Smart Cruise Control (ASCC) Switch Circuit Diagram And Connector End View (Trip + ACC)
G12290531Courtesy of KIA MOTORS AMERICA, INC.
