Components (2)

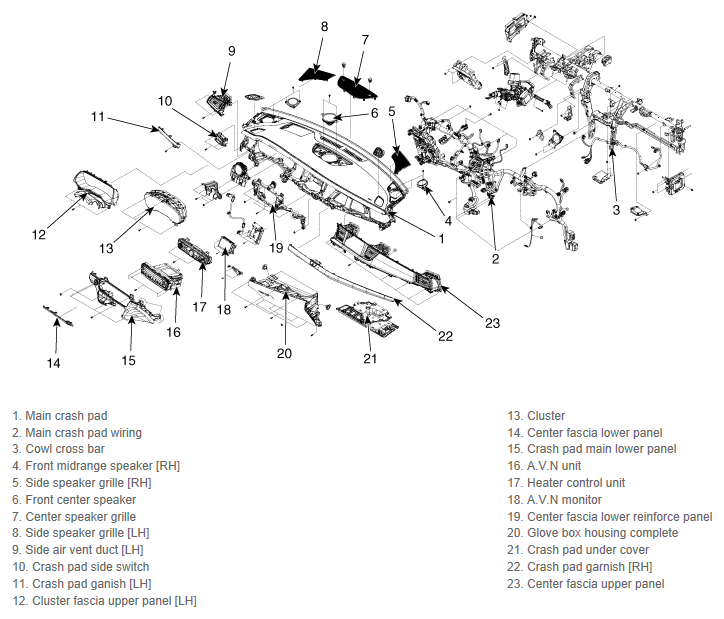

Fig 1: Exploded View Of Crash Pad
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
