Perform HO2S (B1/S1) Heater Actuation Test

  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Ignition "ON" & Engine "RUN"
  3. Perform "ACTUATION TEST " for "O2 Heater-Front"

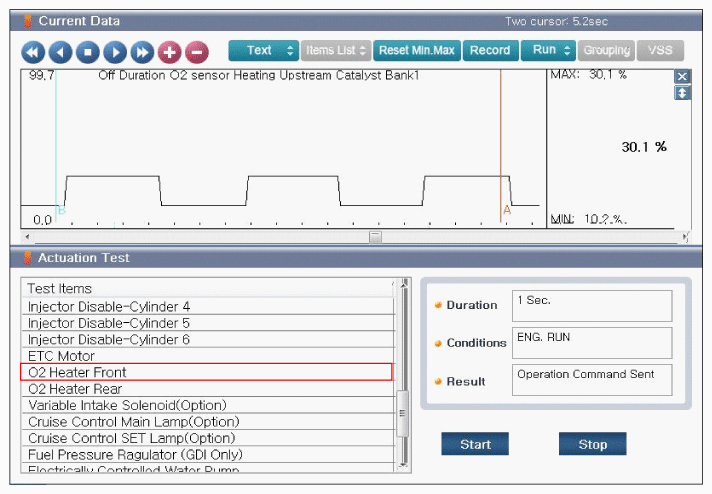

    Fig 1: Screen Display - O2 Heater-Front Actuation Test
    G12284607Courtesy of KIA MOTORS AMERICA, INC.
  4. Does the HO2S (B1/S1) Heater operate properly? (Check variation)

    YES

    NO
