Monitor DTC Status

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON".
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor "Diagnostic Trouble Codes (DTC)" with KDS/GDS.
Fig 1

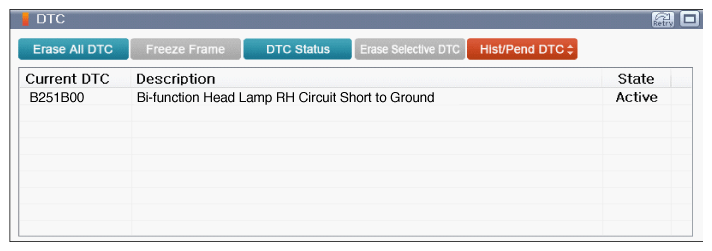

Fig 1: Screen Display - DTC Description
G12328215Courtesy of KIA MOTORS AMERICA, INC.
Active Fault
History/Pending Fault
