Monitor KDS/GDS Data
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON" and Engine "ON".
- Engine Idle.
|
- Connect KDS/GDS to Data Link Connector (DLC).

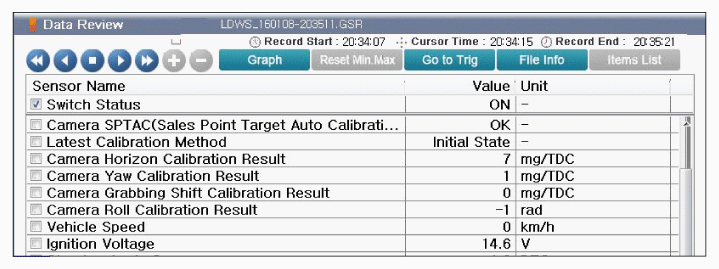

- Perform "Actuation Test" of concerned component with KDS/GDS.
|
Fig 1 |
Courtesy of KIA MOTORS AMERICA, INC.
| Good |
- Fault is intermittent caused by poor contact in the sensors and/or ECM's connector or was repaired and ECM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF REPAIR " procedure.
|
| No Good |
|
