Charging System - 2.0L GDI: Battery: Troubleshooting

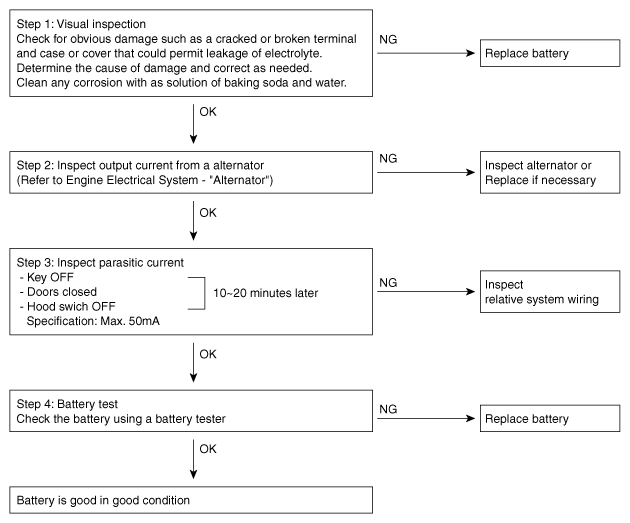

Fig 1: Battery Troubleshooting Procedure Chart
G12163123Courtesy of KIA MOTORS AMERICA, INC.
