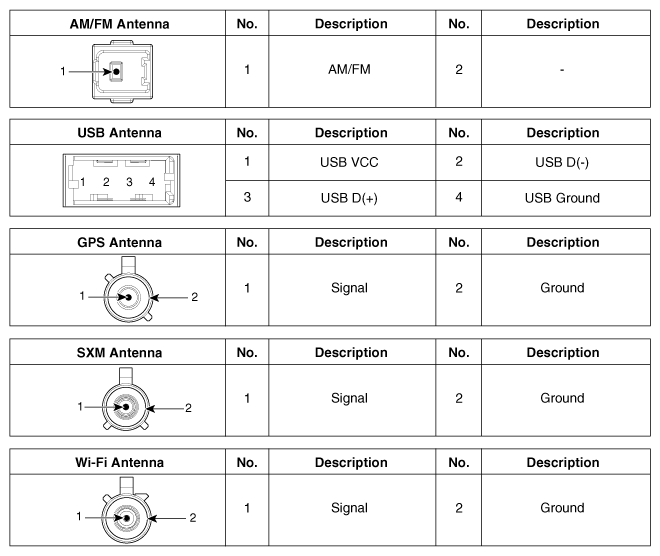

Connector Pin Information
WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
| No. | Connector A | Connector B | Connector C |
|---|---|---|---|
| 1 | Rear left speaker (+) | Multimedia-CAN (+) | Camera-CAN (-) |
| 2 | Front left speaker (+) | - | Camera-CAN (+) |
| 3 | Front right speaker (+) | Parking | - |
| 4 | Rear right speaker (+) | Steering wheel remote controller | - |
| 5 | - | - | - |
| 6 | - | - | - |
| 7 | - | - | - |
| 8 | Illumination (+) | AUX Right_input | - |
| 9 | - | AUX Ground | - |
| 10 | Rear left speaker (-) | MIC (+) | - |
| 11 | Front left speaker (-) | Battery (+) | Body-CAN (+) |
| 12 | Front right speaker (-) | Battery (+) | Body-CAN (-) |
| 13 | Rear right speaker (-) | Multimedia-CAN (-) | - |
| 14 | IGN1 | Auto light | - |
| 15 | - | P_position | - |
| 16 | - | Vehicle speed | - |
| 17 | Illumination (-) | Steering wheel remote controller (Ground) | - |
| 18 | Remote antenna | ACC | - |
| 19 | - | - | |
| 20 | AUX Detect | - | |
| 21 | AUX Left_input | Camera VIN Shield | |
| 22 | MIC (-) | Camera VIN Ground | |
| 23 | Ground | Camera VIN | |
| 24 | Ground | Camera Power |
