Smart Key Code Saving

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Connect the DLC cable of KDS/GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on KDS/GDS.

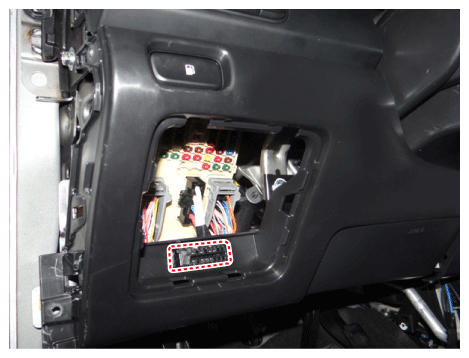

Fig 1: Connecting DLC Cable Of KDS/GDS To Data Link Connector (16 Pins)
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "Smart key code saving".

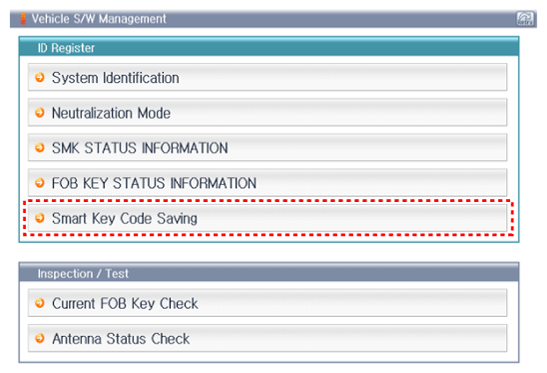

Fig 2: Screen Display - Smart Key Code Saving
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "Smart Key Teaching" menu, push "Enter" key, then the screen will be displayed below.

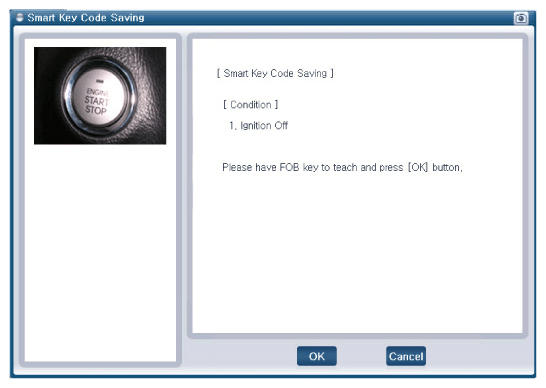

Fig 3: Screen Display - Push Enter Key
Courtesy of KIA MOTORS AMERICA, INC.
After having the teaching smart key, push "ENTER" key.
Input the "Pin Code" for first key teaching.

Fig 4: Screen Display - Input Pin Code For First Key Teaching
Courtesy of KIA MOTORS AMERICA, INC.

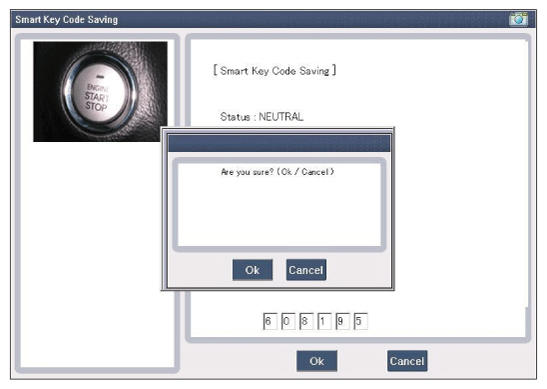

Fig 5: Screen Display - Press OK Button
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

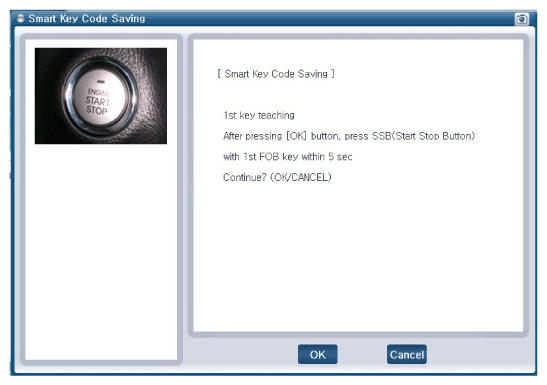

Fig 6: Screen Display - Press SSB With Smart Key Within 5 Sec
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "First key teaching completed".

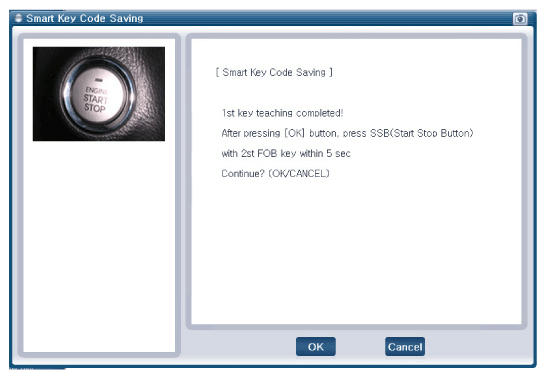

Fig 7: Screen Display - First Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Press the SSB with smart key within 5 sec after pressing "OK".

Fig 8: Screen Display - Pressing OK Button
Courtesy of KIA MOTORS AMERICA, INC.
Confirm the message "Second Key Teaching Completed".

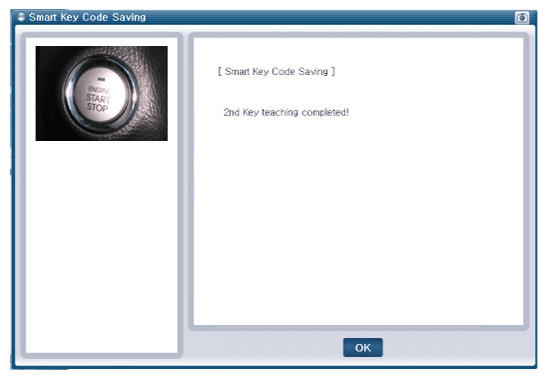

Fig 9: Screen Display - Second Key Teaching Completed
Courtesy of KIA MOTORS AMERICA, INC.
Then the screen will be displayed below when key teaching process is completed.

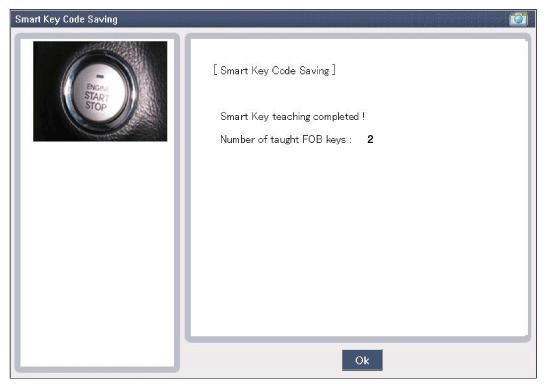

Fig 10: Screen Display - Key Teaching Process Completed

Courtesy of KIA MOTORS AMERICA, INC.
