Repair Procedures: Disassembly

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

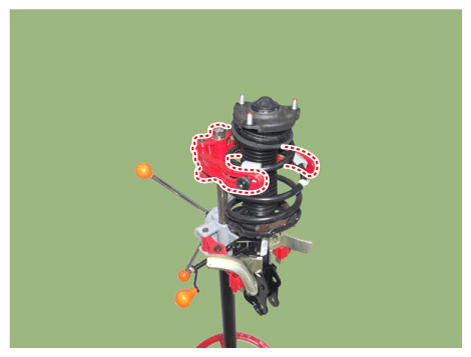

Using a strut spring compressor, compress the coil spring.

Fig 1: Compressing Coil Spring
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- To prevent peeling the paint of coil spring, cover the coil spring with a thin cloth or hose before installing strut spring compressor.
- Set the compression position of strut spring compressor correctly for coil spring not to slant when compressing the coil spring.

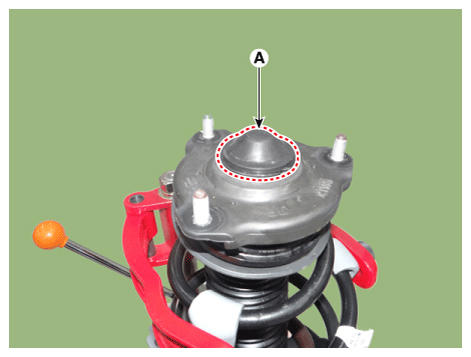

Remove the insulator cap (A).

Fig 2: Removing Insulator Cap
Courtesy of KIA MOTORS AMERICA, INC.

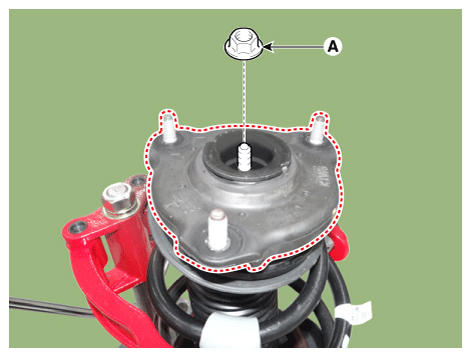

Loosen the insulator nut (A) and then remove the insulator.
Tightening Torque:

78.5 - 88.2 N.m (8.0 - 9.0 kgf.m, 57.9 - 65.0 lb.ft)

Fig 3: Loosening Insulator Nut
Courtesy of KIA MOTORS AMERICA, INC.

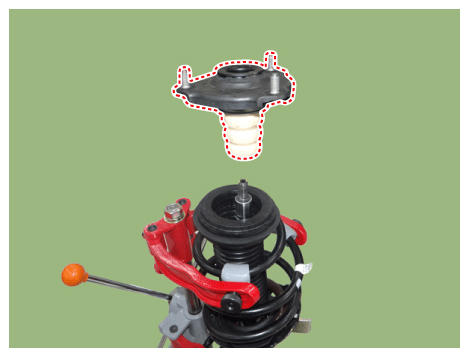

Remove the strut bearing, spring upper pad and rubber.

Fig 4: Removing Strut Bearing, Spring Upper Pad And Rubber
Courtesy of KIA MOTORS AMERICA, INC.

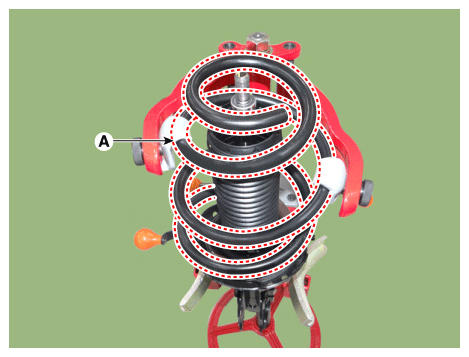

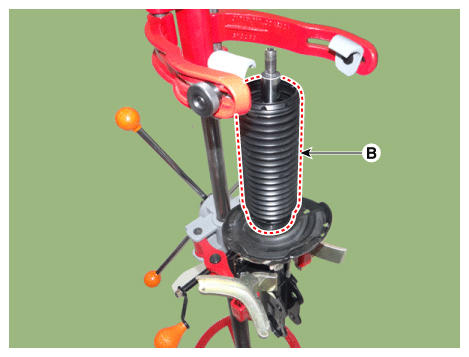

Remove the spring (A) and dust cover (B).

Fig 5: Removing Spring
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Removing Dust Cover
Courtesy of KIA MOTORS AMERICA, INC.

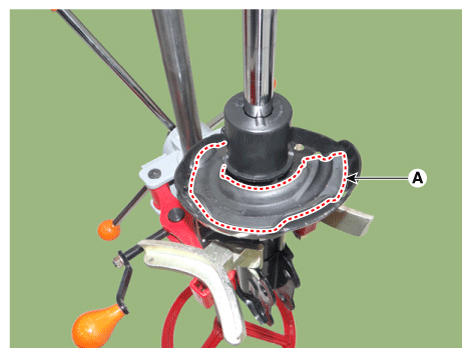

Remove the spring lower pad (A).

Fig 7: Removing Spring Lower Pad

Courtesy of KIA MOTORS AMERICA, INC.
