Repair Procedures: Reassembly

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

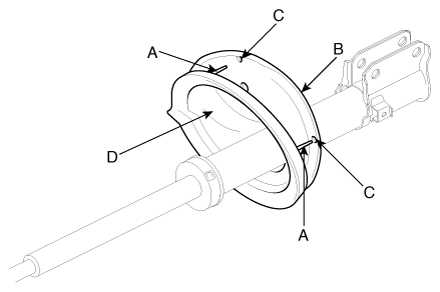

Install the spring lower pad (D) so that the protrusions (A) fits in the holes (C) in the spring lower seat (B).

Fig 1: Installing Spring Lower Pad
Courtesy of KIA MOTORS AMERICA, INC.
Compress coil spring using a strut spring compressor. Install compressed coil spring (A) into shock absorber.
NOTE:
1. Identification color marks are indicated on the coil spring. Pay attention to identification mark during installation.
2. Install the coil spring with the identification mark directed toward the knuckle.
Fig 2: Installing Compressed Coil Spring Into Shock Absorber
Courtesy of KIA MOTORS AMERICA, INC.
After fully extending the piston rod, install the spring upper seat and insulator assembly.
After seating the upper and lower ends of the coil spring (A) in the upper and lower spring seat grooves (B) correctly, tighten new self-locking nut temporarily.

Fig 3: Installing Spring Upper Seat And Insulator Assembly
Courtesy of KIA MOTORS AMERICA, INC.
Remove the special tool (09546-26000).
Tighten the self-locking nut to the specified torque.
Tightening Torque:

58.8 - 68.6 N.m (6.0 - 7.0 kgf.m, 43.4 - 50.6 lb.ft)
