Repair Procedures: Removal

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

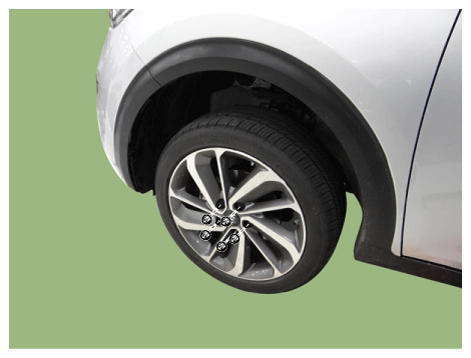

Remove the wheel and tire.
Tightening Torque:

107.9 - 127.5 N.m (11.0 - 13.0 kgf.m, 79.6 - 94.0 lb.ft)

Fig 1: Removing Wheel And Tire
Courtesy of KIA MOTORS AMERICA, INC.

CAUTION: Be careful not to damage the wheel nuts when removing the wheel and tire.

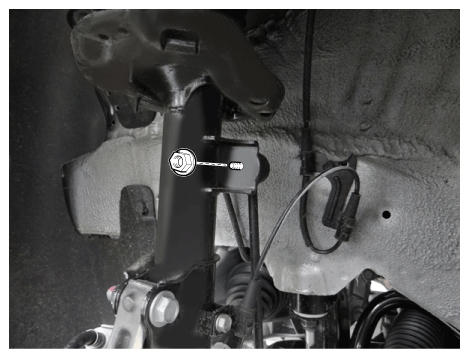

Remove the stabilizer link nut.
Tightening Torque:

98.0 - 117.6 N.m (10.0 - 12.0 kgf.m, 72.3 - 86.7 lb.ft)

Fig 2: Removing Stabilizer Link Nut
Courtesy of KIA MOTORS AMERICA, INC.

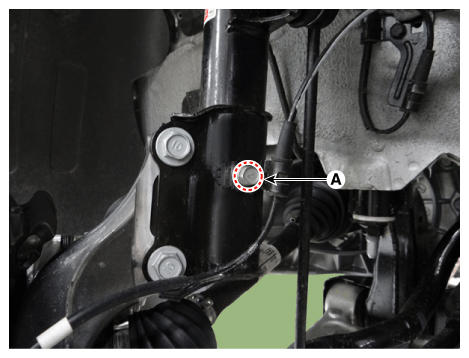

Remove the wheel speed sensor bracket bolt (A).
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 3: Removing Wheel Speed Sensor Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

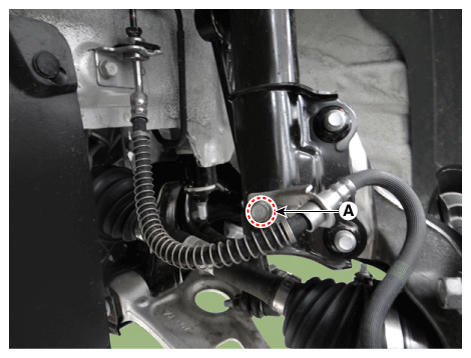

Remove the caliper hose bracket bolt (A).
Tightening Torque:

8.8 - 13.7 N.m (0.9 - 1.4 kgf.m, 6.5 - 10.1 lb.ft)

Fig 4: Removing Caliper Hose Bracket Bolt
Courtesy of KIA MOTORS AMERICA, INC.

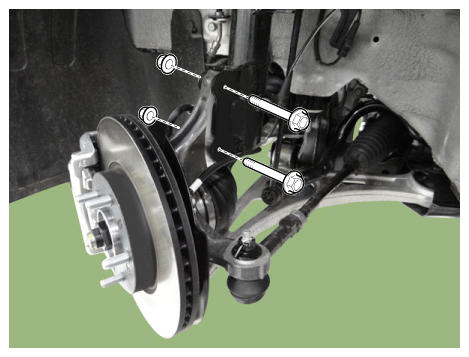

Loosen the front strut lower bolts.
Tightening Torque:

156.9 - 176.5 N.m (16.0 - 18.0 kgf.m, 115.7 - 130.2 lb.ft)

Fig 5: Removing Front Strut Lower Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Remove the cowl top cover.
(Refer to Body - "COWL TOP COVER ")

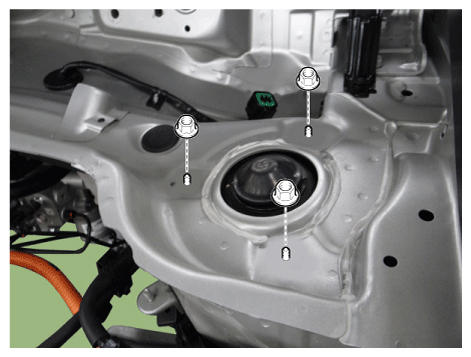

Loosen the front strut upper nuts and then remove the strut assembly.
Tightening Torque:

53.9 - 73.5 N.m (5.5 - 7.5 kgf.m, 39.8 - 54.2 lb.ft)

Fig 6: Removing Front Strut Upper Nuts
Courtesy of KIA MOTORS AMERICA, INC.
