Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the glove box housing.
(Refer to Body - "GLOVE BOX HOUSING ".)
Loosen the mounting screw and remove the passenger seat shower duct (A).

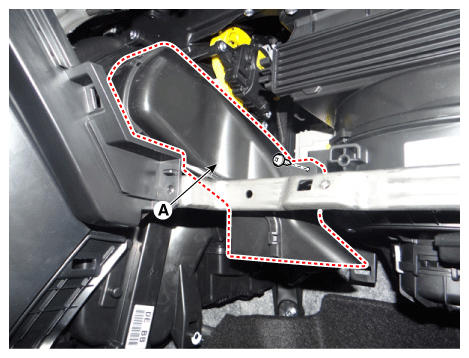

Fig 1: Removing Passenger Seat Shower Duct Mounting Screw
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connector and then remove the auto defogging actuator (A) after loosening the screws.

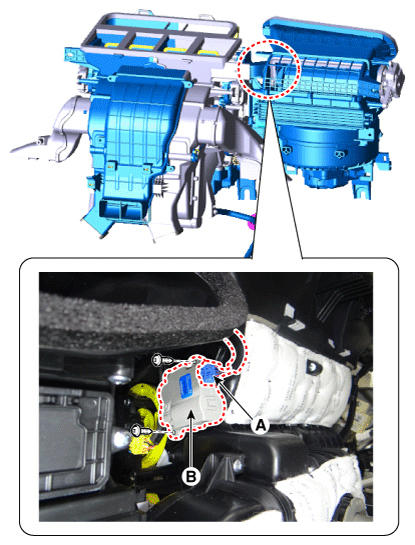

Fig 2: Removing Auto Defogging Actuator Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
