Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.
Remove the floor console side cover [LH] (A).

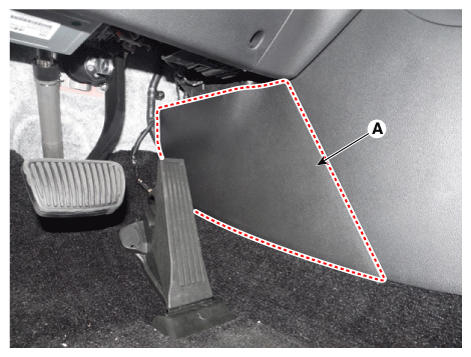

Fig 1: Removing Floor Console Side Cover (LH)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the PTC heater connector (A).

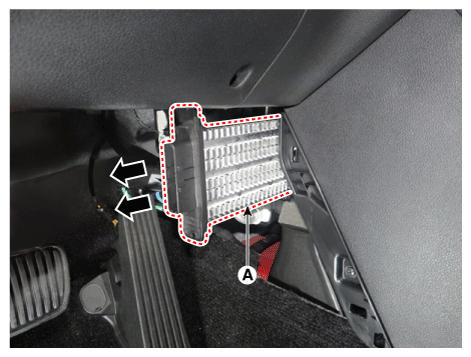

Fig 2: Disconnecting PTC Heater Connector
Courtesy of KIA MOTORS AMERICA, INC.
Remove the PTC heater core (A) after loosening the mounting screws.

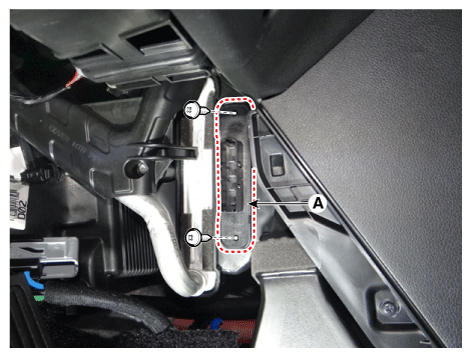

Fig 3: Removing PTC Heater Core Mounting Screws (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 4: Removing PTC Heater Core Mounting Screws (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
