Rear Wheel Alignment: Camber

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Loosen the nut holding the lower arm cam bolt (A).
Adjust rear camber by turning the rear lower arm cam bolt (A) clockwise or counterclockwise. Camber adjustment should be made by turning the right and left cam bolt by the same amount.
Camber: -1.2°±0.5°

One Scale Turn: About 0.2°

Cam Bolt (LH): Clockwise camber (-)

Cam Bolt (RH): Clockwise camber (+)

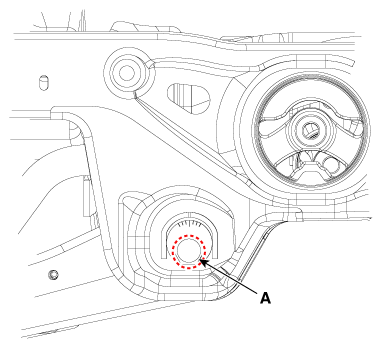

Fig 1: Loosening Nut Holding Lower Arm Cam Bolt
Courtesy of KIA MOTORS AMERICA, INC.
When completing the rear camber adjustment, tighten the nut to specified torque.

Tightening Torque:

107.9 - 117.7 N.m (11.0 - 12.0 kgf.m, 79.6 - 86.8 lb.ft)
