Circuit Inspection: Notes

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

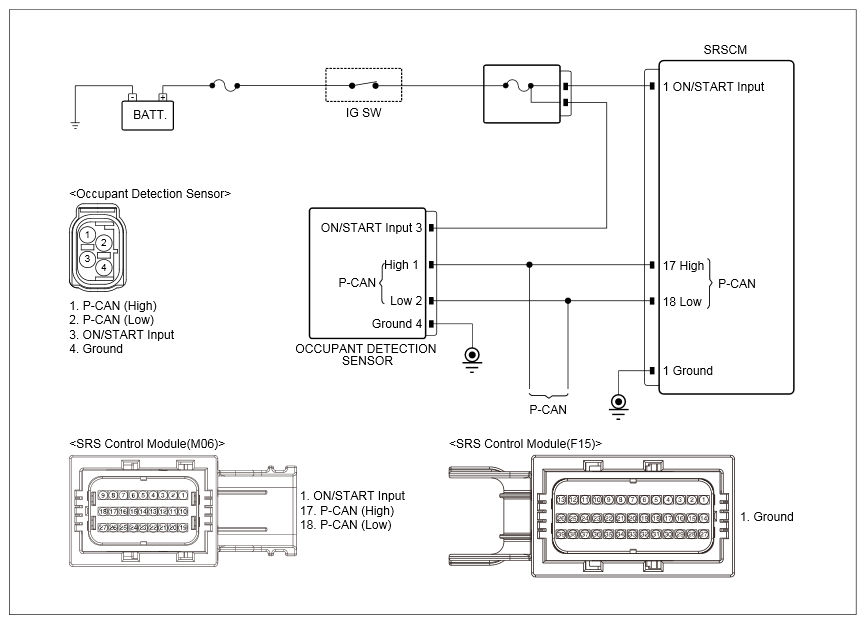

Fig 1: SRSCM System Circuit

Courtesy of KIA MOTORS AMERICA, INC.

SRSCM SYSTEM SPECIFICATION

Charging System Inspection
Inspection Condition	(+) Probe		(-) Probe		Specification
Inspection Condition	Connector	Terminal	Connector	Terminal	Specification
Engine "ON". Head Lamp & heatwire "ON". Engine RPM is over 2000 RPM for more than 2m.	Battery (+)	-	Battery (-)	-	Approx. 14.9V

Good	Go to "WIRING INSPECTION " procedure.
No Good	Carefully re-do this troubleshooting guide steps. If no problems were found with the circuits or connectors, Replace the alternator and go to "VERIFICATION OF REPAIR " procedure.
