Monitor DTC Status
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
| Inspection Condition |
Inspection Procedure |
Reference |
- Ignition "ON".
|
- Connect KDS/GDS to Data Link Connector (DLC).
- Monitor "Diagnostic Trouble Codes (DTC)" with GDS/KDS.
|

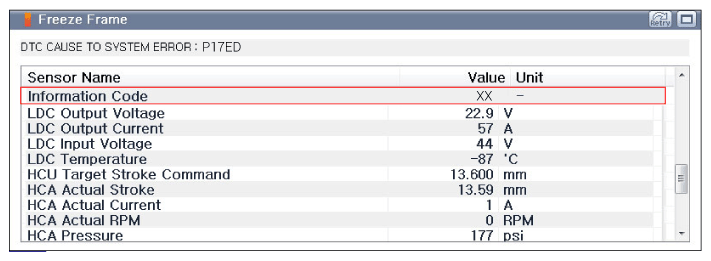

Fig 1 to Fig 2 |
Courtesy of KIA MOTORS AMERICA, INC.
Courtesy of KIA MOTORS AMERICA, INC.
NOTE:
- Symptom: No acceleration, rattling or engine braking
- MIL: ON (Check the information code number from freeze frame data)
- Service Lamp: OFF
- E/C Normal Close State (Lock Up: ON): it is temporarily opened at startup and then closed.
- Lock Up: Engine clutch ON state (HEV driving state: Engine driving + EV motor driving).
- Lock Up: Engine clutch OFF state (EV READY driving state: EV motor driving).
| Information Code |
Fault Type |
HCA Limp Home Mode |
HCU Limp Home Mode |
| 13 |
Invalid Battery Voltage Detection_LCU |
- |
- |
| 27 |
Unintended Clutch Opening |
| Active Fault |
|
| History/Pending Fault |
|
