Vehicle S/W Management

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with GDS/KDS.	Fig 1 - Fig 4

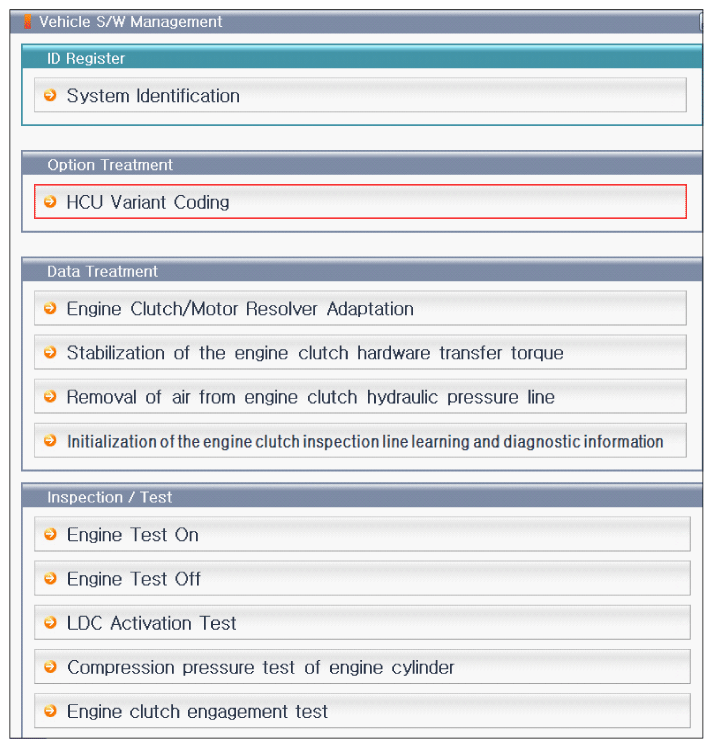

Fig 1: Screen Display - Variant Coding Procedure (1 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

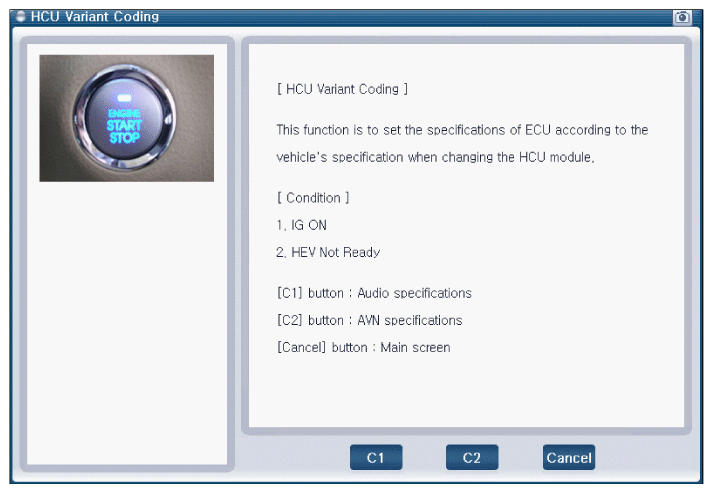

Fig 2: Screen Display - Variant Coding Procedure (2 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

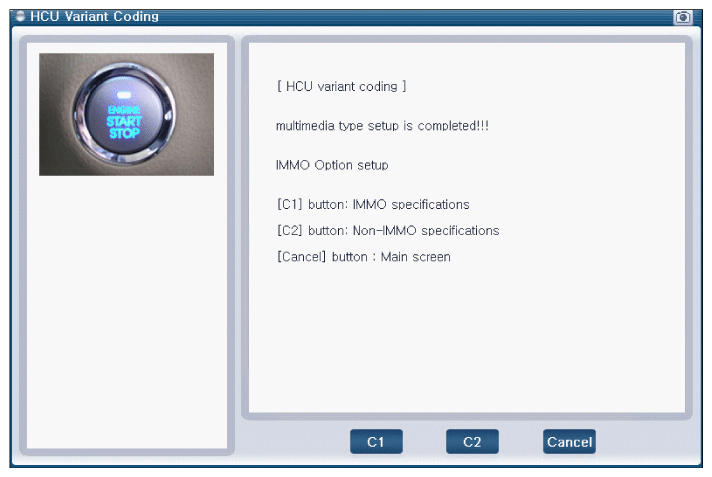

Fig 3: Screen Display - Variant Coding Procedure (3 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

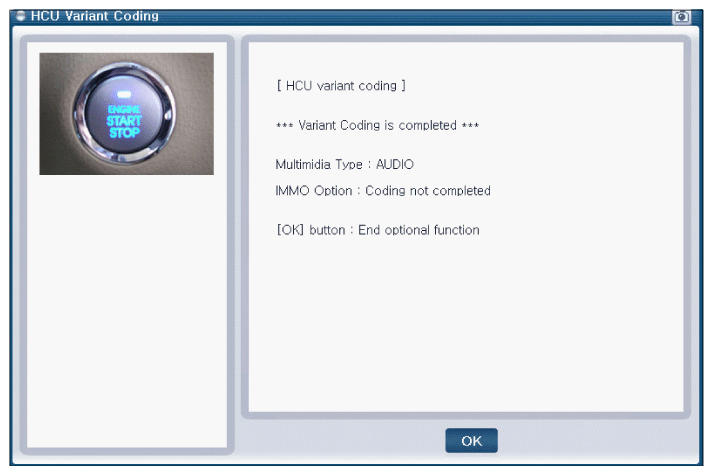

Fig 4: Screen Display - Variant Coding Procedure (4 Of 4)

Courtesy of KIA MOTORS AMERICA, INC.

Good	Go to "VERIFICATION OF REPAIR " procedure.
No Good	Fault is intermittent caused by poor contact in the sensor's and/or Control module's connector or was repaired and Control module's memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and then go to "VERIFICATION OF REPAIR " procedure.
