Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Be careful not to damage the hood and body.

Information

When removing and installing the hood, an assistant is necessary.
When removing the clips, use a clip remover.

After loosening the hood hinge (B) mounting bolts, remove the hood assembly (A).
Tightening torque:

21.6 - 26.5 N.m (2.2 - 2.7 kgf.m, 15.9 - 19.5 lb.ft)

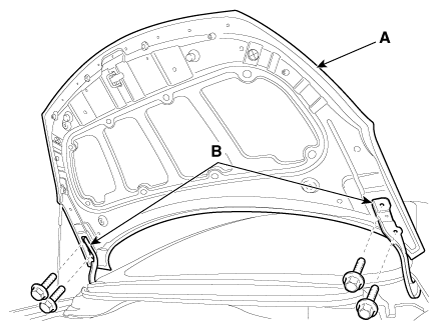

Fig 1: Locating Hood Assembly And Hood Hinge With Mounting Bolts
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the hood locks/unlocks and opens/closes properly.
- Adjust the hood alignment.
