Remove the front door window glass.
(Refer to Front Door - "FRONT DOOR WINDOW GLASS ")

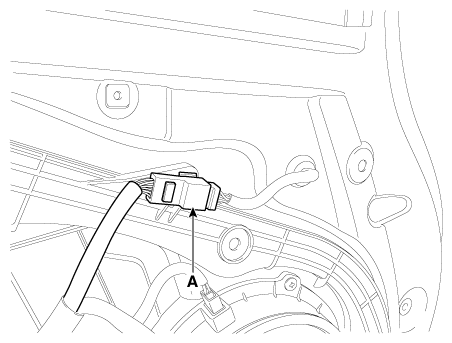

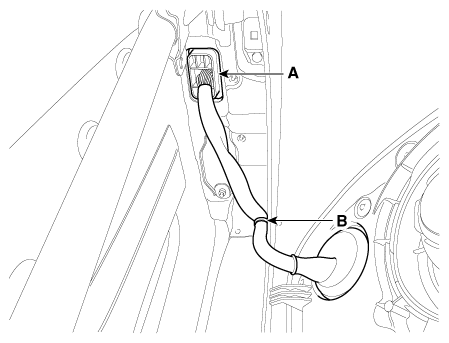

Disconnect the front door main connector (A).

Fig 1: Disconnecting Front Door Main Connector
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the outside rear view mirror connector (A).
(4 Door, 5 Door)

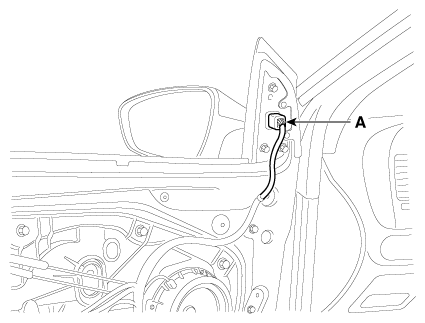

Fig 2: Outside Rear View Mirror Connector (4 Door Or 5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

(2 Door)

Fig 3: Outside Rear View Mirror Connector (2 Door)
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the front door latch (B) mounting screws.
After loosening the mounting bolts, then remove the front door module (A).
Tightening Torque:

Bolt: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

Screw: 6.9 - 10.8 N.m (0.7 - 1.1 kgf.m, 5.1 - 8.0 lb.ft)

(4 Door, 5 Door)

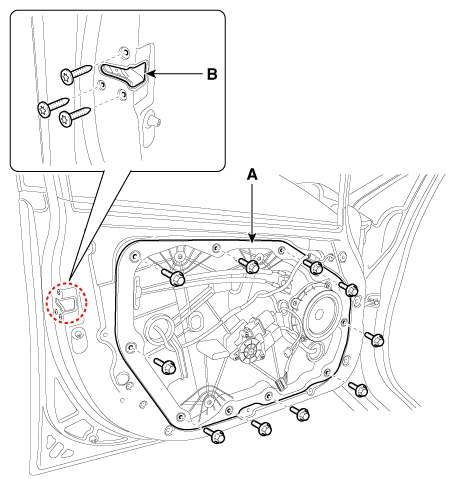

Fig 4: Locating Front Door Module And Front Door Latch With Bolts (4 Door Or 5 Door)
Courtesy of KIA MOTORS AMERICA, INC.

(2 Door)

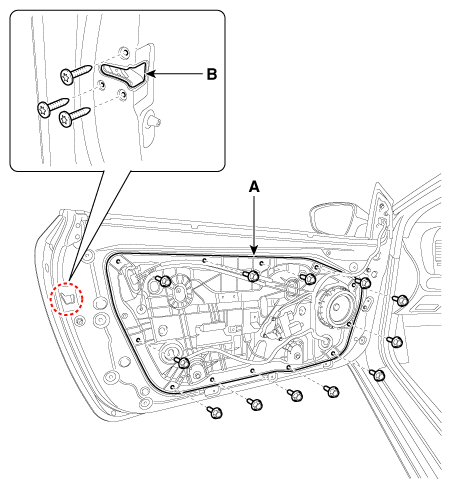

Fig 5: Locating Front Door Module And Front Door Latch With Bolts (2 Door)
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front door outside handle connector (A) and remove the front door outside handle rod (B).

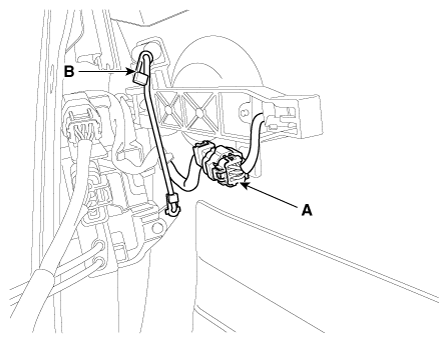

Fig 6: Locating Front Door Outside Handle Connector And Front Door Outside Handle Rod
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door main connector pad (A) and mounting clip (B).

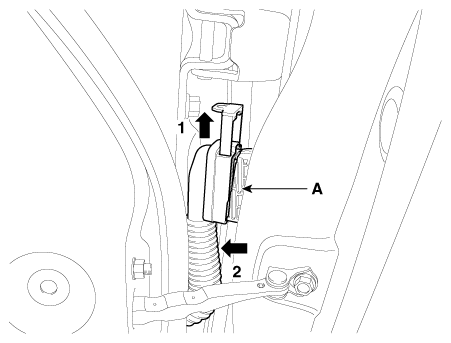

Fig 7: Front Door Main Connector Pad And Mounting Clip
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the front door latch connectors (A).

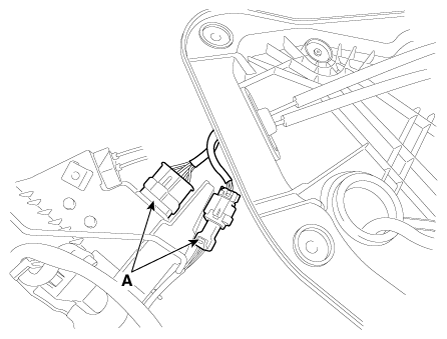

Fig 8: Front Door Latch Connectors
Courtesy of KIA MOTORS AMERICA, INC.
Disconnect the connectors and front door module wiring harness (A).

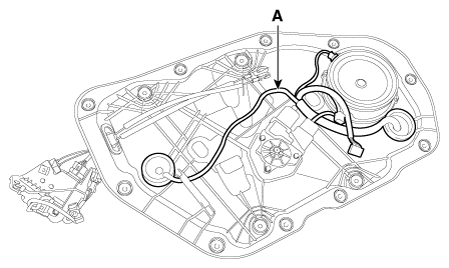

Fig 9: Front Door Module Wiring Harness
Courtesy of KIA MOTORS AMERICA, INC.
Remove the front door latch assembly.
(Refer to Front Door - "FRONT DOOR LATCH ")
Remove the front speaker.
(Refer to Body Electrical System - "SPEAKERS ")
Remove the front power window motor.
(Refer to Body Electrical System - "POWER WINDOW MOTOR ")
Install in the reverse order of removal.
Information
- The area of whole parts should be applied with sufficient grease.
- Make sure connectors are connected properly and each rod is connected securely.
- Make sure the door locks/unlocks and opens/closes properly
