Repair Procedures: Replacement: Notes

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

(4 Door, 5 Door)

CAUTION:

Put on gloves to protect your hands.

NOTE:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Be careful not to scratch the door trim and other parts.

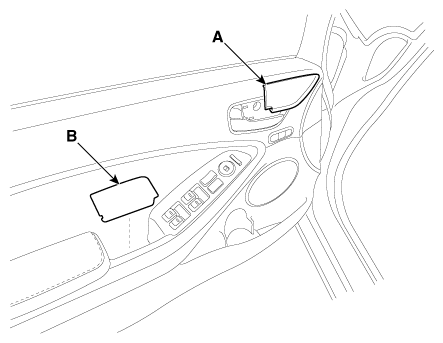

Using a screwdriver or remover, remove the front door inside handle cap (A).
Remove the front door pull handle cap (B).

Fig 1: Locating Front Door Pull Handle Cap
Courtesy of KIA MOTORS AMERICA, INC.

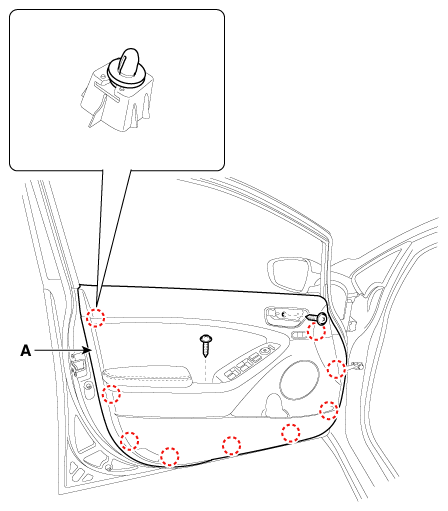

After loosening the mounting screws, then remove the front door trim (A).

Fig 2: Locating Front Door Trim With Mounting Screws
Courtesy of KIA MOTORS AMERICA, INC.

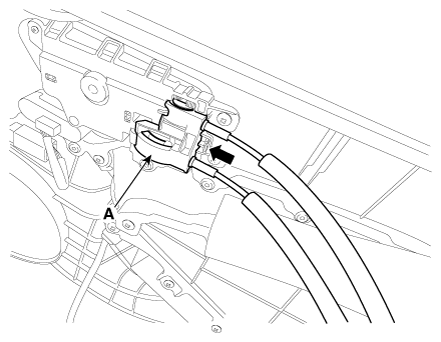

Remove the front door inside handle cage (A).

Fig 3: Front Door Inside Handle Cage
Courtesy of KIA MOTORS AMERICA, INC.

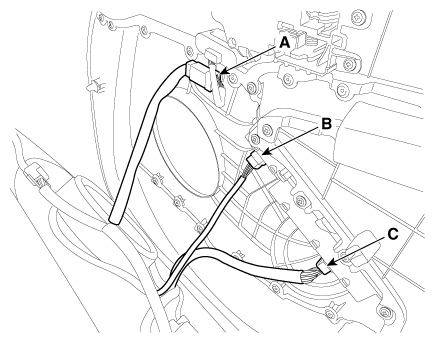

Disconnect the seat memory switch connector (A), outside rear view mirror switch connector (B), power window switch connector (C).

Fig 4: Seat Memory Switch Connector, Outside Rear View Mirror Switch Connector And Power Window Switch Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Make sure the door locks/unlocks and opens/closes properly.
- Replace any damaged clips.
