Circuit diagram: Notes

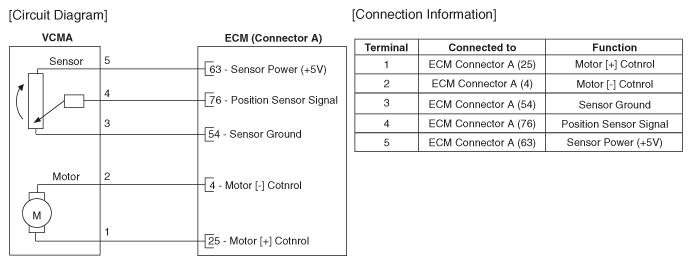

Fig 1: Variable Charge Motion Actuator Circuit Diagram

G12165670

Courtesy of KIA MOTORS AMERICA, INC.
