Signal Waveform & Data

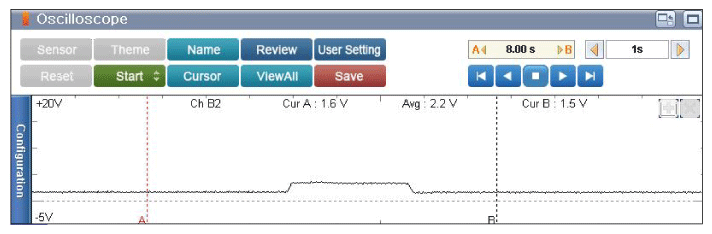

Fig 1: Screen Display - Normal Waveform Of VCM Position Sensor At Acceleration

Courtesy of KIA MOTORS AMERICA, INC.

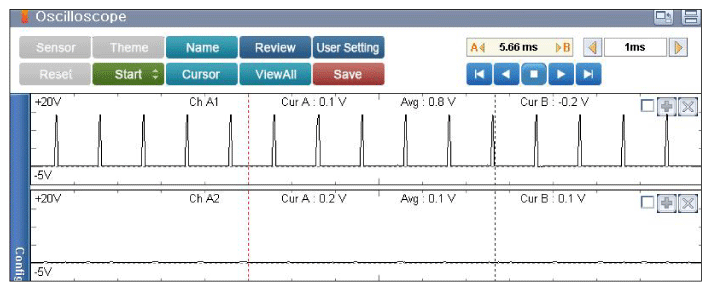

Fig 2: Screen Display - Normal Waveform Of VCM Motor Control Line At Acceleration (Flap Open)

Courtesy of KIA MOTORS AMERICA, INC.

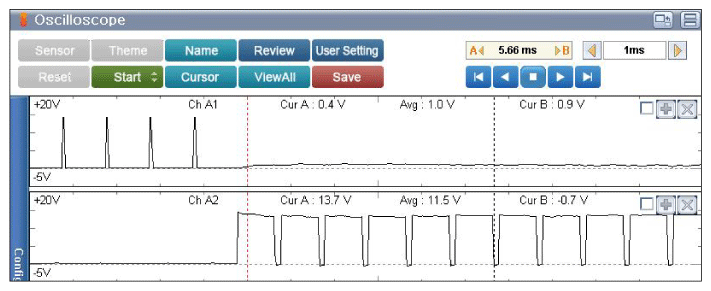

Fig 3: Screen Display - Normal Waveform Of VCM Motor Control Line At Idle (Flap Close)

Courtesy of KIA MOTORS AMERICA, INC.
