PCSV Inspection

■ Perform PCSV Actuation Test

1. Connect KDS/GDS to Data Link Connector (DLC).
2. Ignition "ON" & Engine "OFF"
3. Perform "Actuation Test"  for "Canister Purge Valve".

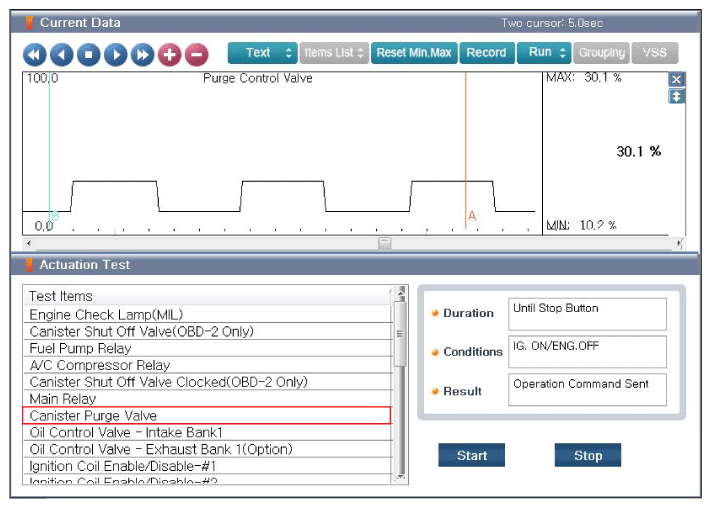

   Fig 1: Screen Display - PCSV Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.
4. Does the PCSV operate properly? (Check variation)

   YES

   • Go to "Verification of Vehicle Repair " procedure.

   NO

   • Go to "Inspect PCSV " procedure.

■ Inspect PCSV

1. Ignition "OFF".
2. Disconnect PCSV connector.
3. Measure resistance between power and control terminal of the PCSV. (Component Side)

   Specification:  Approx. 22.0 to 26.0 [20°C (68°F)]

■ Confirm Part Inspection

1. Does the PCSV operate properly? (Check variation)

   YES

   • Go to "Injector Inspection " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If no problems were found with the circuits or connectors, replace the PCSV and go to "Verification of Vehicle Repair " procedure.
