Variant coding Procedure

■ On-Line type on GDS

1. Ignition "OFF", connect GDS.
2. Ignition "ON" & Engine "OFF" select vehicle name and airbag system.
3. Select Variant coding mode.
4. Follow steps on the screen as below.
   1. Initial ACU Variant Coding screen
      Fig 1: Scantool Display - Initial ACU Variant Coding Screen

      Courtesy of KIA MOTORS AMERICA, INC.

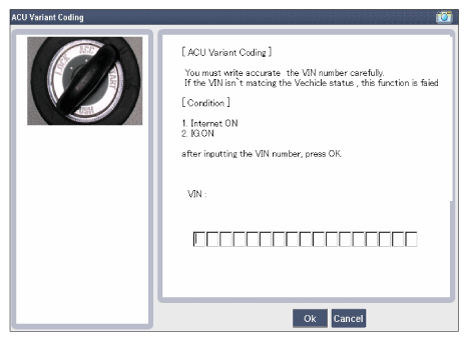

   2. VIN Code entering screen
      Fig 2: Scantool Display - VIN Code Entering Screen

      Courtesy of KIA MOTORS AMERICA, INC.

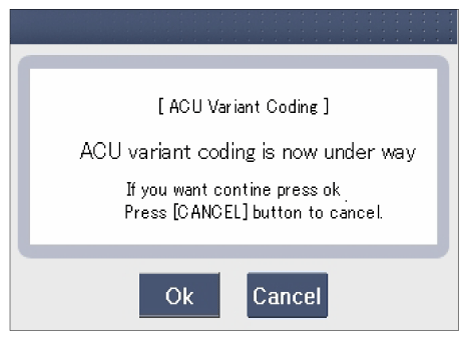

   3. Variant coding's proceeding screen-1

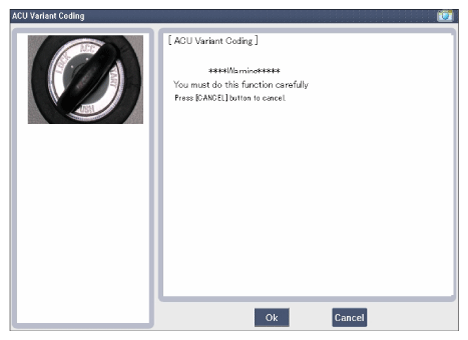

      Fig 3: Scantool Display - Variant Coding's Proceeding Screen-1

      Courtesy of KIA MOTORS AMERICA, INC.
   4. Variant coding's proceeding screen-2

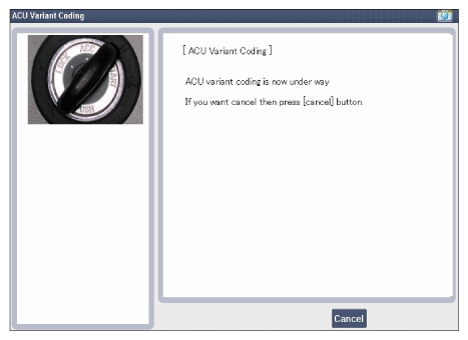

      Fig 4: Scantool Display - Variant Coding's Proceeding Screen-2

      Courtesy of KIA MOTORS AMERICA, INC.
   5. Variant coding is completed
      Fig 5: Scantool Display - Variant Coding Completed

      Courtesy of KIA MOTORS AMERICA, INC.
      NOTE:

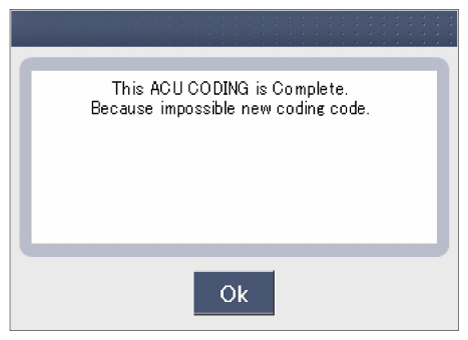

      1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
         Fig 6: Scantool Display - Variant Coding

         Courtesy of KIA MOTORS AMERICA, INC.
      2. Screen of communication failure
      Fig 7: Scantool Display - Communication Failure

      Courtesy of KIA MOTORS AMERICA, INC.

   ■ Off-line type on GDS (This can be used when not connecting to Internet)

   1. Initial ACU Variant Coding screen

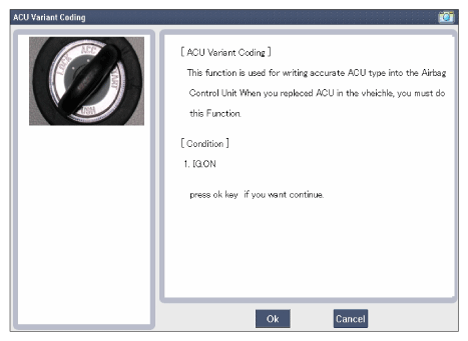

      Fig 8: Scantool Display - Initial ACU Variant Coding Screen

      Courtesy of KIA MOTORS AMERICA, INC.
   2. ACU Coding Code entering screen

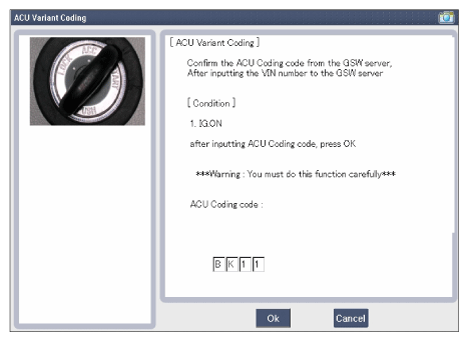

      Fig 9: Scantool Display - ACU Coding Code Entering Screen

      Courtesy of KIA MOTORS AMERICA, INC.
   3. Screen of rechecking ACU Coding code's entering

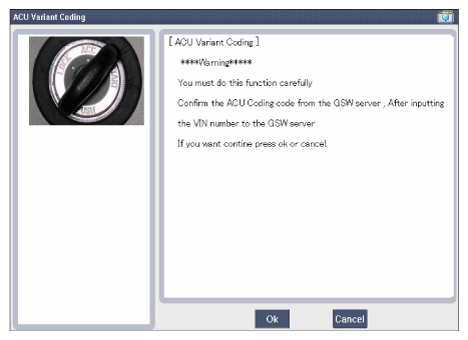

      Fig 10: Scantool Display - Rechecking ACU Coding Code's Entering

      Courtesy of KIA MOTORS AMERICA, INC.
   4. Variant coding's proceeding screen-1

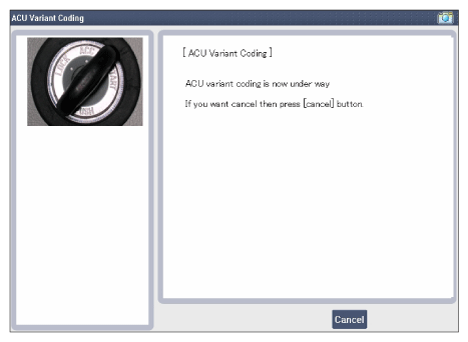

      Fig 11: Scantool Display - Variant Coding's Proceeding Screen-1

      Courtesy of KIA MOTORS AMERICA, INC.
   5. Variant coding's proceeding screen-2
      Fig 12: Scantool Display - Variant Coding's Proceeding Screen-2

      Courtesy of KIA MOTORS AMERICA, INC.
   6. Variant coding is completed

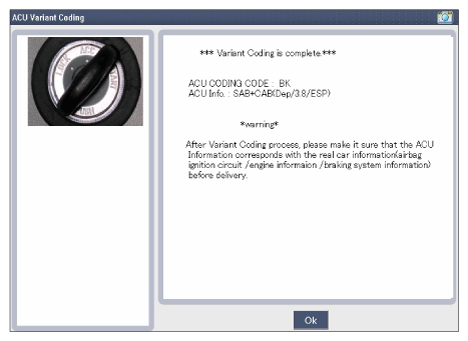

   Fig 13: Scantool Display - Variant Coding Completed

   Courtesy of KIA MOTORS AMERICA, INC.
   NOTE:

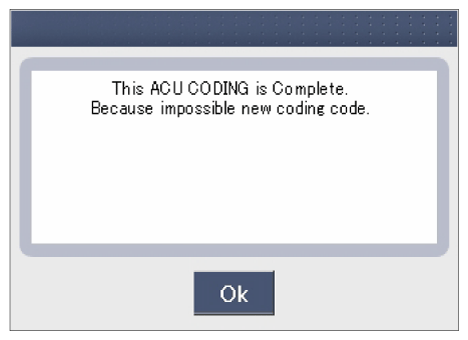

   1. This screen is opened when you try the variant coding again on the SRSCM which has bee performed variant coding.
   Fig 14: Scantool Display - Variant Coding

   Courtesy of KIA MOTORS AMERICA, INC.
