Kia
>>
2017
>>
Forte LX, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Memory Modules
>>
Integrated Memory System (IMS)
>>
IMS Control Switch
>>
Schematic Diagrams
>>
Circuit diagram
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Circuit diagram

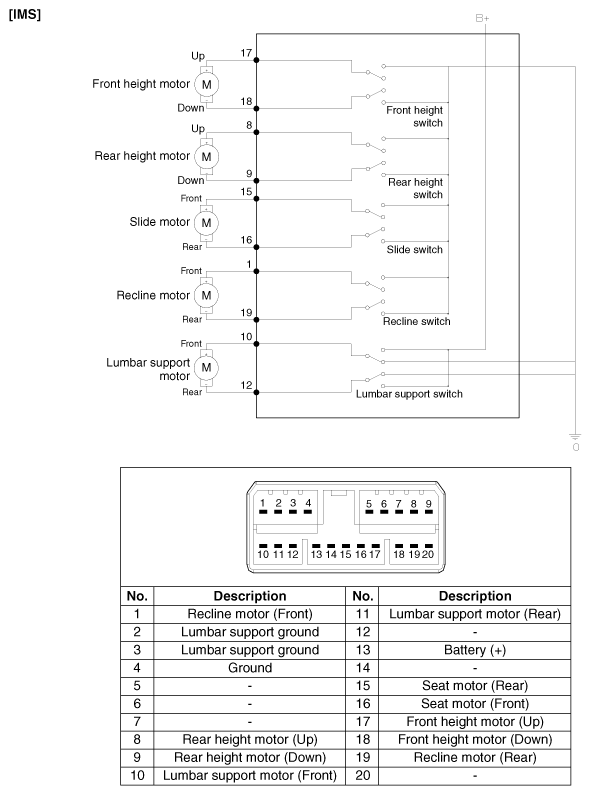

Fig 1: IMS Control Switch Circuit Diagram
Courtesy of KIA MOTORS AMERICA, INC.
