Repair Procedures: Replacement

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative (-) battery terminal.

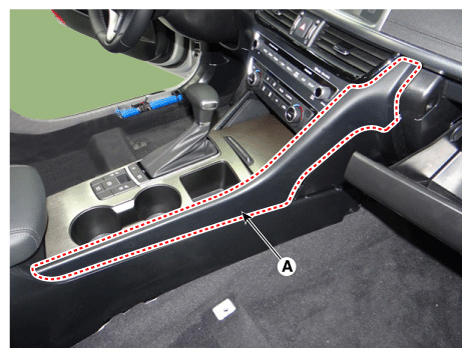

Using a screwdriver or remover, remove the front console garnish (A).

Fig 1: Removing Front Console Garnish
Courtesy of KIA MOTORS AMERICA, INC.

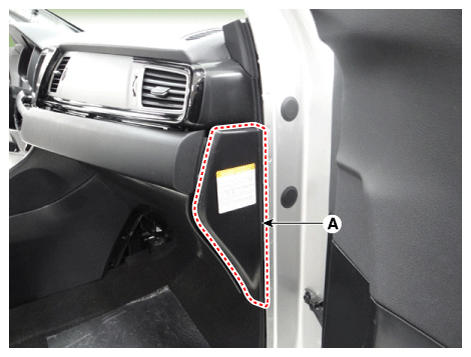

Using a remover, remove the crash pad side cover [RH] (A).

Fig 2: Removing Crash Pad Side Cover (RH)
Courtesy of KIA MOTORS AMERICA, INC.

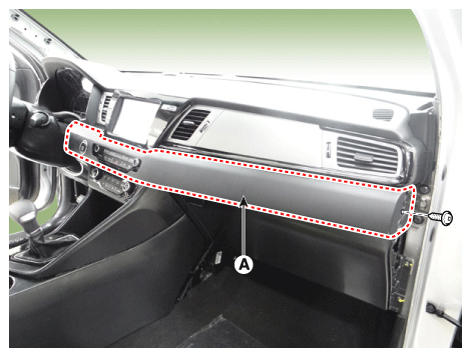

Loosen the screw and remove the crash pad plate [RH] (A).

Fig 3: Removing Crash Pad Plate (RH)
Courtesy of KIA MOTORS AMERICA, INC.

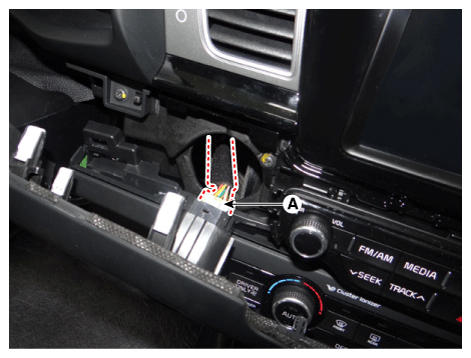

Remove the engine start button connector (A).

Fig 4: Removing Engine Start Button Connector
Courtesy of KIA MOTORS AMERICA, INC.

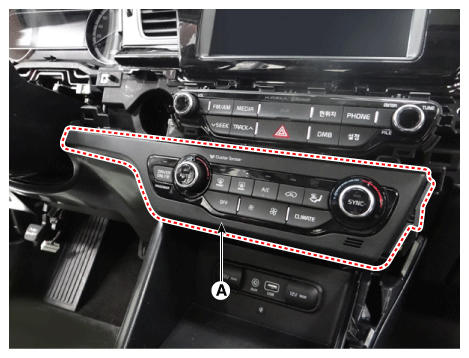

Remove the center fascia panel (A).

Fig 5: Removing Center Fascia Panel
Courtesy of KIA MOTORS AMERICA, INC.

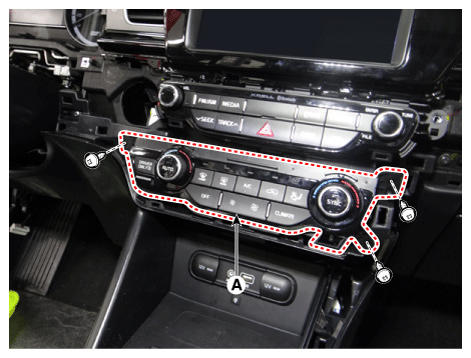

Loosen the screw and remove the heater and air conditioner control unit (A).

Fig 6: Removing Heater And Air Conditioner Control Unit Screw
Courtesy of KIA MOTORS AMERICA, INC.

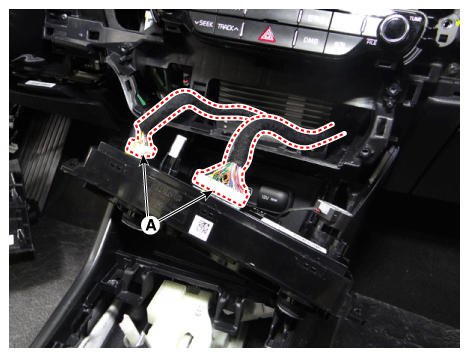

Remove the heater and the air conditioning control unit connector (A).

Fig 7: Removing Heater And Air Conditioning Control Unit Connector
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
