Teaching Procedures

Key teaching must be done after replacing a defective PCM (ECM) or when providing additional keys to the vehicle owner.

The procedure starts with an PCM (ECM) request for vehicle specific data (PIN code: 6 digits) from the tester. The "virgin" PCM (ECM) stores the vehicle specific data and the key teaching can be started. The "Learnt" PCM (ECM) compares the vehicle specific data from the tester with the stored data. If the data are correct, the teaching can proceed.

If incorrect vehicle specific data have been sent to the PCM (ECM) three times, the PCM (ECM) will reject the request of key teaching for one hour. This time cannot be reduced by disconnecting the battery or any other manipulation. After reconnecting the battery, the timer starts again for one hour.

The key teaching is done by ignition on with the key and additional tester commands. The PCM (ECM) stores the relevant data in the EEPROM and in the transponder. Then the PCM (ECM) runs the authentication required for confirmation of the teaching process. The successful programming is then confirmed by a message to the tester.

If the key is already known to the PCM (ECM) from a previous teaching, the authentication will be accepted and the EEPROM data are updated.

There is no changed transponder content (this is impossible for a Learnt transponder).

The attempt to repeatedly teach a key, which has been taught already during the same teaching cycle, is recognized by the PCM (ECM). This rejects the key and a message is sent to the tester.

The PCM (ECM) rejects invalid keys, which are presented for teaching. A message is sent to the tester. The key can be invalid due to faults in the transponder or other reasons, which result from unsuccessful programming of data. If the PCM (ECM) detects different authenticators of a transponder and an PCM (ECM), the key is considered to be invalid.

The maximum number of taught keys is 4.

If an error occurs during the Immobilizer Service Menu, the PCM (ECM) status remains unchanged and a specific fault code is stored.

If the PCM (ECM) status and the key status do not match for teaching of keys, the tester procedure will be stopped and a specific fault code will be stored at PCM (ECM).

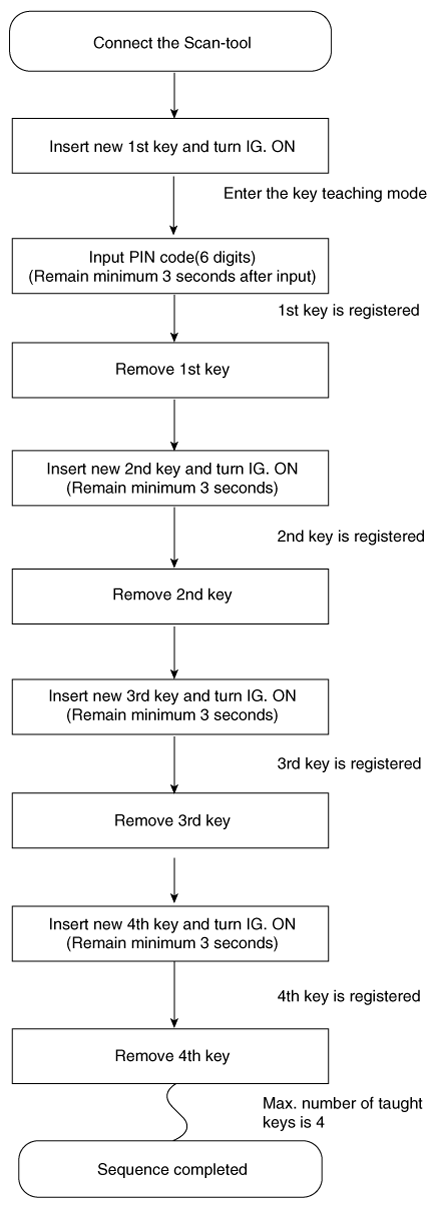

Fig 1: Key Teaching Procedure Chart

Courtesy of KIA MOTORS AMERICA, INC.

1. PCM (ECM) Learnt status.

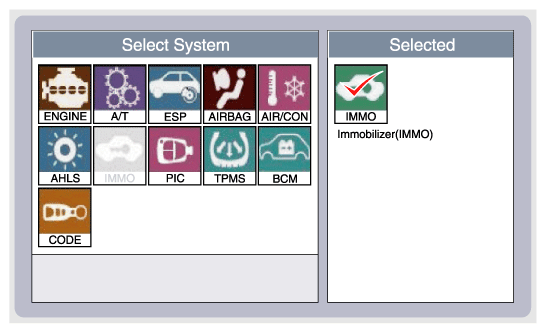

   Fig 2: Screen Display - PCM (ECM) Learnt Status

   Courtesy of KIA MOTORS AMERICA, INC.

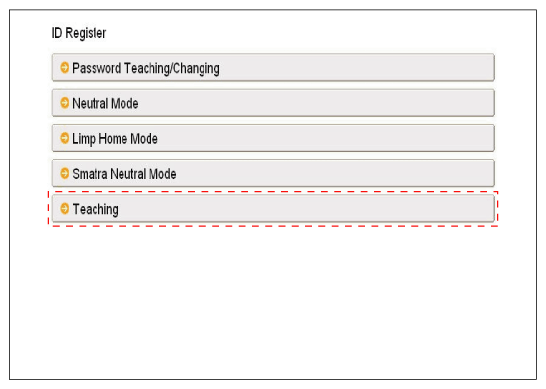

   Fig 3: Screen Display - ID Register, Teaching

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 4: Screen Display - ID Register, Teaching

   Courtesy of KIA MOTORS AMERICA, INC.

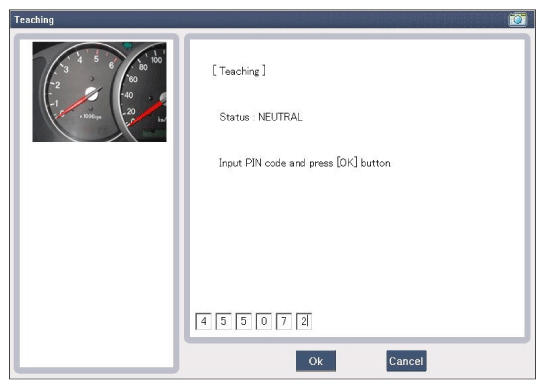

   Fig 5: Screen Display - Input Code And Press OK Button

   Courtesy of KIA MOTORS AMERICA, INC.

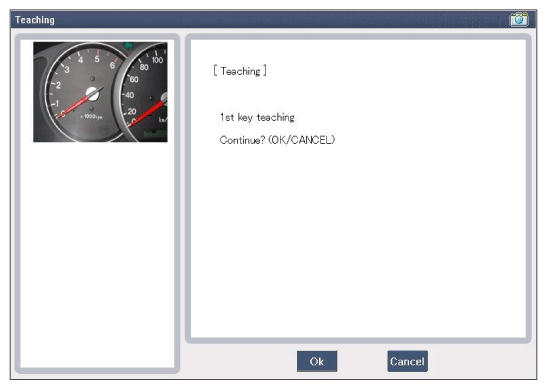

   Fig 6: Screen Display - 1st Teaching

   Courtesy of KIA MOTORS AMERICA, INC.

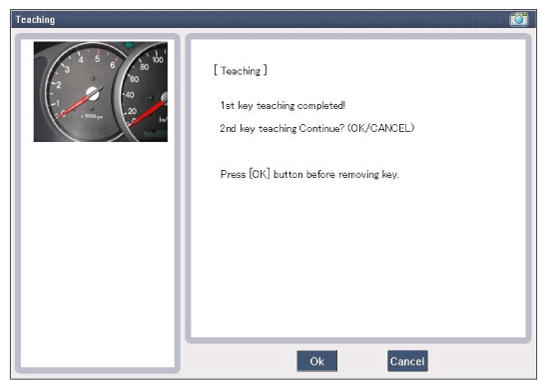

   Fig 7: Screen Display - 1st Key Teaching Completed

   Courtesy of KIA MOTORS AMERICA, INC.

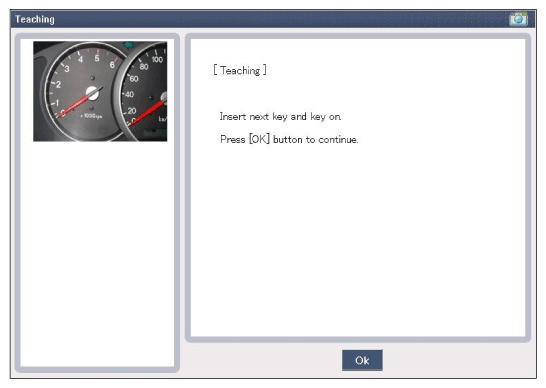

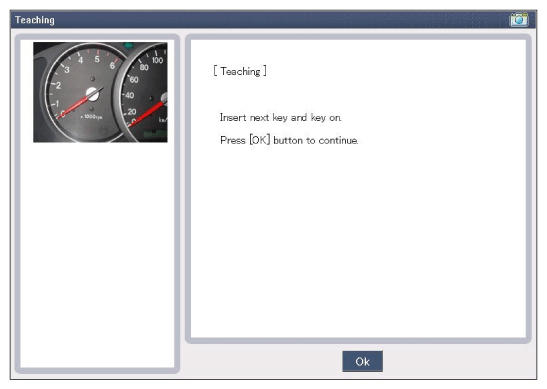

   Fig 8: Screen Display - Insert Next Key, Press OK Button To Continue

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 9: Screen Display - 2nd And 3rd Key Teaching Completed

   Courtesy of KIA MOTORS AMERICA, INC.

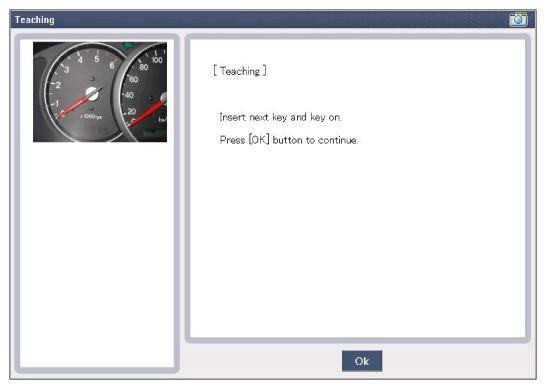

   Fig 10: Screen Display - Insert Next Key, Press OK Button To Continue

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 11: Screen Display - 4th And 5th Key Teaching Completed

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 12: Screen Display - Insert Next Key, Press OK Button To Continue

   Courtesy of KIA MOTORS AMERICA, INC.
2. PCM (ECM) virgin status.

   After replacing new "PCM (ECM)" KDS/GDS displays that PCM (ECM) is virgin status in Key Teaching mode.

   "VIRGIN" status means that PCM (ECM) has not matched any PIN code before.

The user password for limp home is taught at the service station. The owner of the vehicle can select a number with four digits.

The user password teaching is only accepted by a "Learnt" PCM (ECM). Before first teaching of user password to an PCM (ECM), the status of the password is "virgin" No limp home function is possible.

The teaching is started by ignition on, with a valid Key (Learnt key) and sending the user password by tester. After successful teaching, the status of the user password changes from "virgin" to "Learnt"

The Learnt user password can also be changed. This can be done if the user password status is "Learnt" and the tester sends authorization of access, either the old user password or the vehicle specific data. After correct authorization, the PCM (ECM) requests the new user password. The status remains "Learnt" and the new user password will be valid for the next limp home mode.

If wrong user passwords or wrong vehicle specific data have been sent to the PCM (ECM) three times continuously or intermittently, the PCM (ECM) will reject the request to change the password for one hour. This time cannot be reduced by disconnecting the battery or any other actions. After reconnecting the battery, the timer starts again for one hour.

1. User password teaching

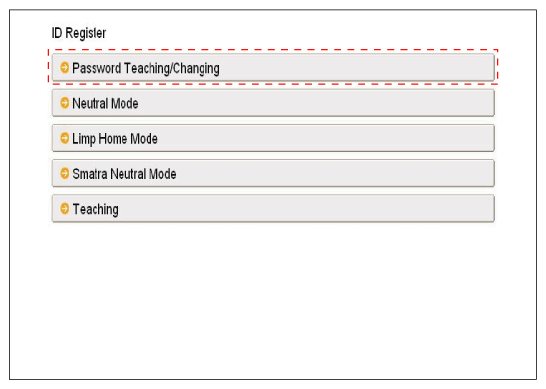

   Fig 13: Screen Display - User Password Teaching/Changing

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 14: Screen Display - Input New Password

   Courtesy of KIA MOTORS AMERICA, INC.
   Fig 15: Screen Display - Password Teaching/Changing, Press OK Button

   Courtesy of KIA MOTORS AMERICA, INC.

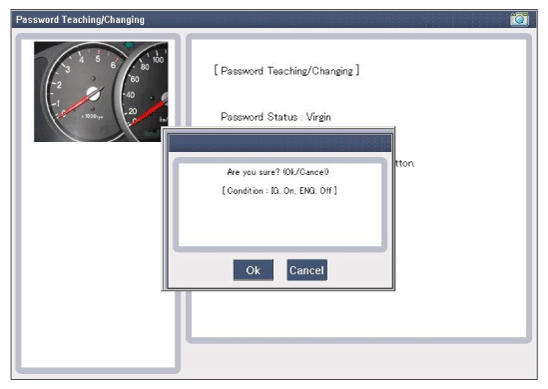

   Fig 16: Screen Display - Password Teaching/Changing, Status

   Courtesy of KIA MOTORS AMERICA, INC.

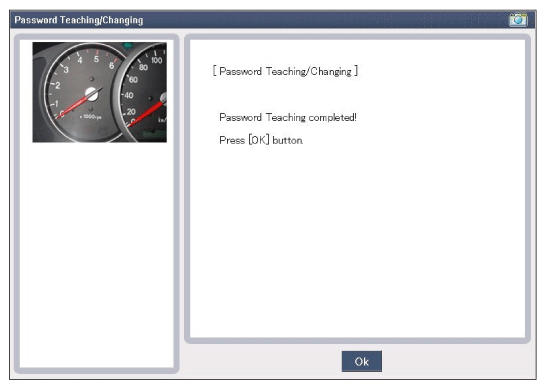

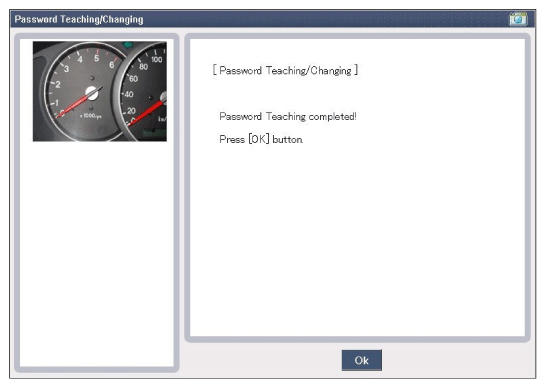

   Fig 17: Screen Display - Password Teaching Completed

   Courtesy of KIA MOTORS AMERICA, INC.

   In case of putting wrong password, retry from first step after 10 seconds.

2. User password changing

Fig 18: Screen Display - User Password Teaching/Changing

Courtesy of KIA MOTORS AMERICA, INC.

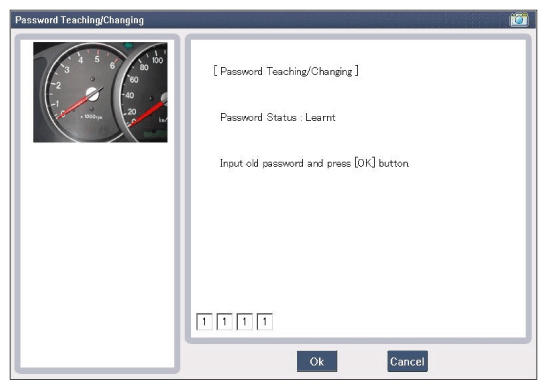

Fig 19: Screen Display - Input Old Password And Press OK Button

Courtesy of KIA MOTORS AMERICA, INC.

Fig 20: Screen Display - Password Teaching/Changing, Status

Courtesy of KIA MOTORS AMERICA, INC.

Fig 21: Screen Display - Password Teaching/Changing, Enter New Password

Courtesy of KIA MOTORS AMERICA, INC.

Fig 22: Screen Display - Password Teaching Completed

Courtesy of KIA MOTORS AMERICA, INC.
