Repair Procedures: Replacement
WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Do not apply sealant to the body.

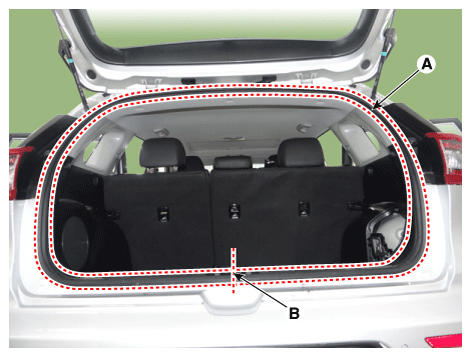

- Remove the Liftgate weatherstrip (A).
Courtesy of KIA MOTORS AMERICA, INC.
- Install in the reverse order of removal.
Information
Install the weatherstrip aligned with center line (B).
