Repair Procedures: Adjustment

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
  1. After loosening the Liftgate hinge (A) mounting bolts, adjust the Liftgate by moving it up and down, or right and left.
  2. Adjust the Liftgate height by turning the Liftgate over-slam bumpers (B).
  3. After loosening the Liftgate striker (C) mounting bolts, adjust the Liftgate striker by moving it up and down, or right and left.

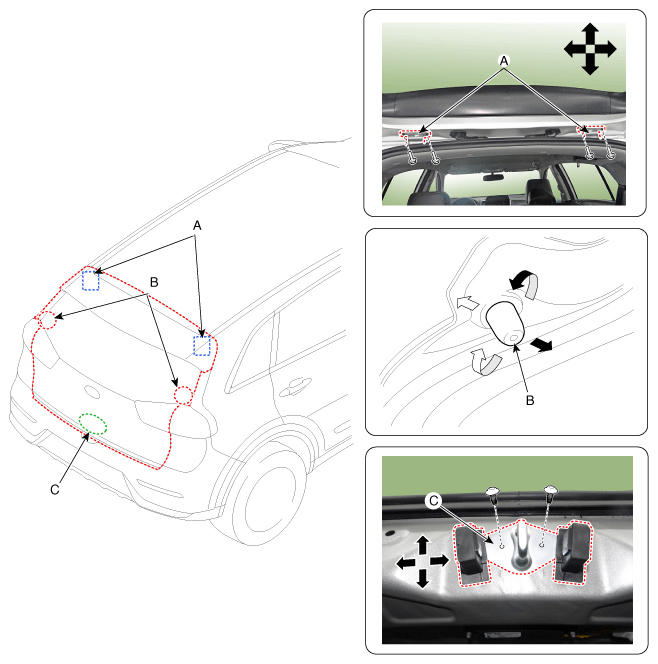

Fig 1: Loosening Liftgate Hinge Mounting Bolts
G12332102Courtesy of KIA MOTORS AMERICA, INC.
