Vehicle S/W Management

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.

Inspection Condition	Inspection Procedure	Reference
Ignition "ON" and Engine "OFF".	Connect KDS/GDS to Data Link Connector (DLC). Perform "Vehicle S/W Management" of concerned component with KDS/GDS.	Fig 1 to Fig 3

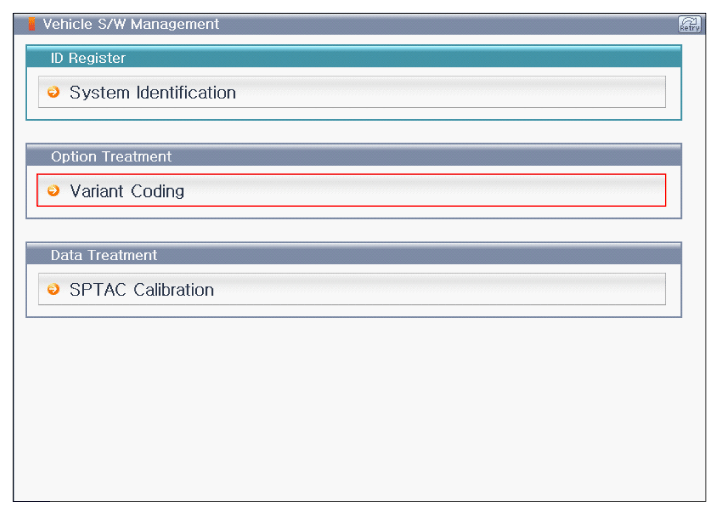

Fig 1: Screen Display - LKAS/LDWS Variant Coding 1

Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - LKAS/LDWS Variant Coding 2

Courtesy of KIA MOTORS AMERICA, INC.

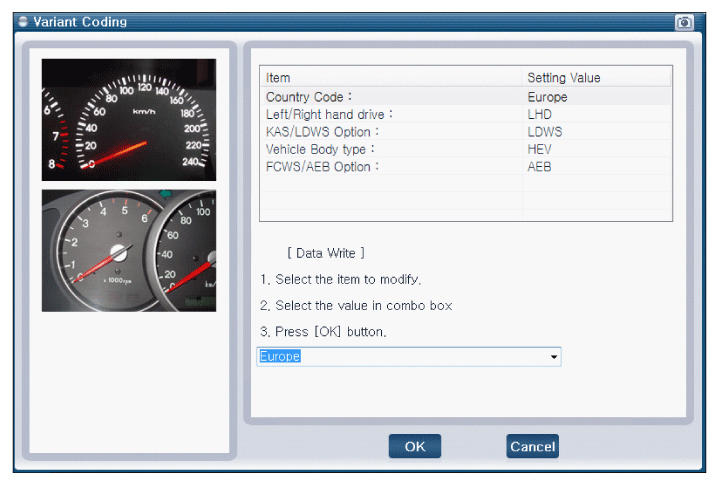

Fig 3: Screen Display - LKAS/LDWS Variant Coding 3

Courtesy of KIA MOTORS AMERICA, INC.

Good	Fault might be caused by not performing variant coding after LDWS/LKAS ECU replacement. Go to "VERIFICATION OF REPAIR " procedure.
No Good	If no problems were found with the circuits or connectors, replace the LDWS switch and go to "VERIFICATION OF REPAIR " procedure.
