Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the engine room under cover front panel (A).
    Fig 1: Removing Engine Room Under Cover Front Panel
    G12166728Courtesy of KIA MOTORS AMERICA, INC.
  3. Disconnect the Connector and then remove the Ambient Temperature Sensor (A).

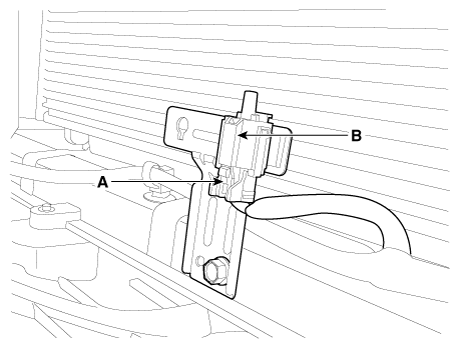

    Fig 2: Removing Ambient Temperature Sensor & Connector
    G12166729Courtesy of KIA MOTORS AMERICA, INC.
  4. Install in the reverse order of removal.
