Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the Negative (-) Battery Terminal.
Remove the Glove Box Housing.
(Refer to Body - "GLOVE BOX HOUSING ")
Disconnect the Cluster Ionizer Connector (A).
Remove the Screws and then remove the Cluster Ionizer (B).

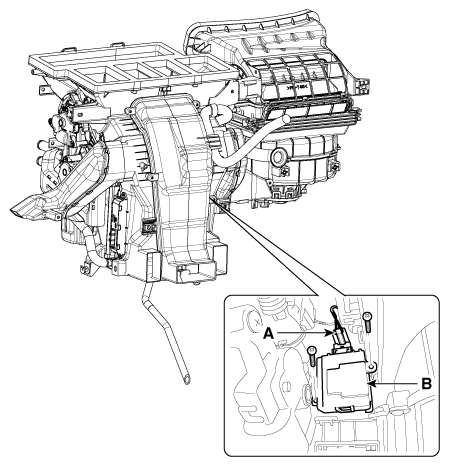

Fig 1: Disconnecting Cluster Ionizer Connector And Screws
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
