Repair Procedures: Installation

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Make sure the compressor mounting bolt with the correct length is screwed in. Tighten the mounting bolts (A) with the specified tightening order.
Tightening Torque:

19.6 - 33.3 N.m (2.0 - 3.4 kgf.m, 14.5 - 24.6 lbf.ft)

[Gamma Engine]

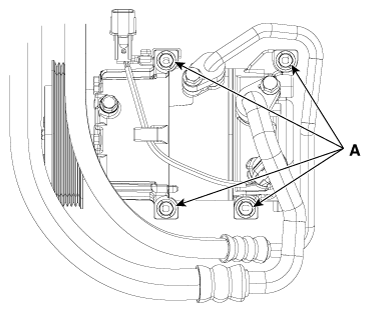

Fig 1: Compressor Mounting Bolts (Gamma Engine)
Courtesy of KIA MOTORS AMERICA, INC.

[Nu Engine]

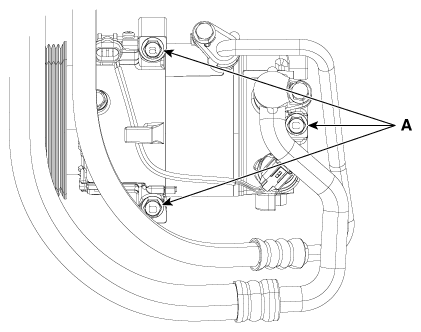

Fig 2: Compressor Mounting Bolts (Nu Engine)
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
- If you install a new compressor, drain all the refrigerant oil from the removed compressor and measure its volume. Subtract the volume of drained oil from the original compressor oil capacity. The result is the amount of oil you should drain from the new compressor (through the suction fitting)
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- To avoid contamination, do not return the oil to the container once dispensed, and never mix it with other refrigerant oils.
- Immediately after using the oil, replace the cap on the container and seal it to avoid moisture absorption.
