Repair Procedures: Removal

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

If the compressor is marginally operable, run the engine at idle speed, and let the air conditioning work for a few minutes, then shut the engine off.
Disconnect the negative cable from the battery.
Recover the refrigerant with a recovery/charging station.
Remove the right side front tire.
Separate the front portion of the front wheel guard from the wheel house.

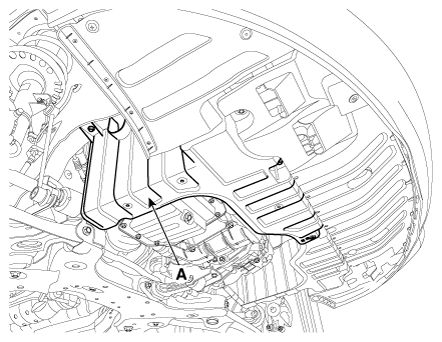

Remove the rear part of the front side engine room under cover (A).

Fig 1: Rear Part Of Engine Room Under Cover
Courtesy of KIA MOTORS AMERICA, INC.
Loosen the Drive Belt.
(Refer to Engine Mechanical System - "DRIVE BELT ")

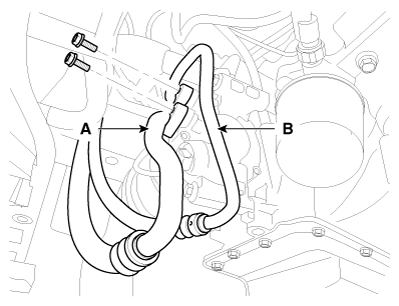

Remove the bolts, then disconnect the suction line (A) and discharge line (B) from the compressor.
Tightening Torque:

18.6-27.4N.m (1.9-2.8 kgf.m, 13.7-20.2 lbf.ft)

Fig 2: Suction Line
Courtesy of KIA MOTORS AMERICA, INC.

NOTE: Plug or cap the lines immediately after disconnecting them to avoid moisture and dust contamination.

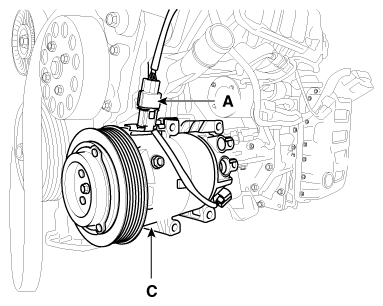

Disconnect the compressor clutch connector (A), and then remove the mounting bolts (B) and the compressor (C).

Fig 3: Compressor Clutch Connector

Courtesy of KIA MOTORS AMERICA, INC.

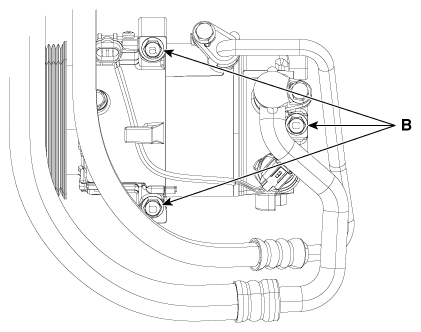

[Gamma Engine]

Fig 4: Mounting Bolts And Compressor (Gamma Engine)

Courtesy of KIA MOTORS AMERICA, INC.

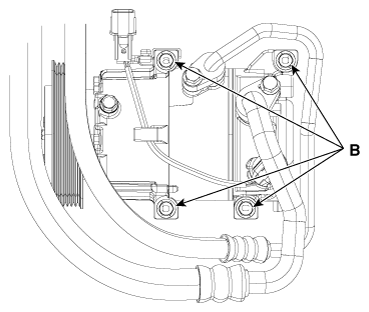

[Nu Engine]

Fig 5: Mounting Bolts And Compressor (Nu Engine)

Courtesy of KIA MOTORS AMERICA, INC.
