Repair Procedures: Replacement

WARNING: This page is about a different car, the 2018 Kia Forte5 and 2018 Kia Forte. However, it is still accessible from the selected car via links, so may be relevant.

Recover the refrigerant with a recovery/recycling/charging station.
Disconnect the negative (-) battery terminal.
Remove the front bumper cover.
(Refer to Body - "FRONT BUMPER COVER ")

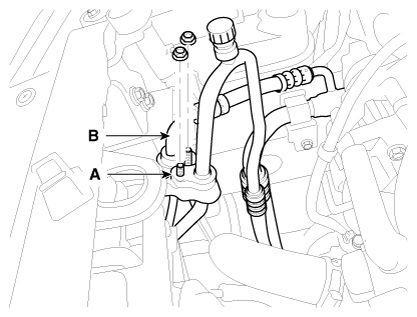

Remove the discharge line (A) and liquid line (B) from the condenser.
Tightening Torque:

7.8-11.7N.m (0.8-1.2kgf.m, 5.7-8.6 lb.ft)

Fig 1: Discharge Line And Liquid Line From Condenser
Courtesy of KIA MOTORS AMERICA, INC.

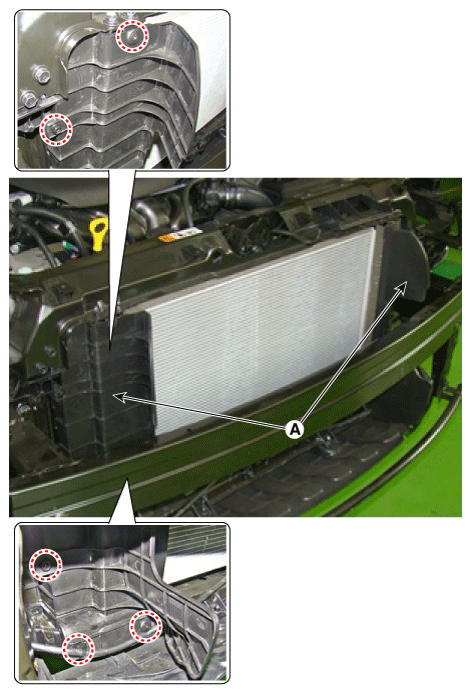

Remove the air guard (A).

Fig 2: Air Guard
Courtesy of KIA MOTORS AMERICA, INC.

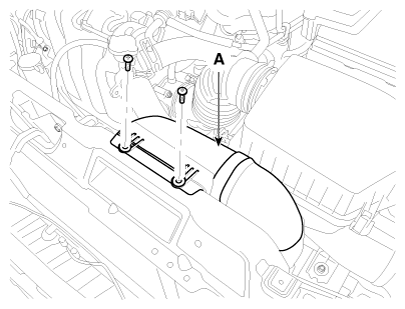

Remove the intake air duct (A).

Fig 3: Intake Air Duct
Courtesy of KIA MOTORS AMERICA, INC.

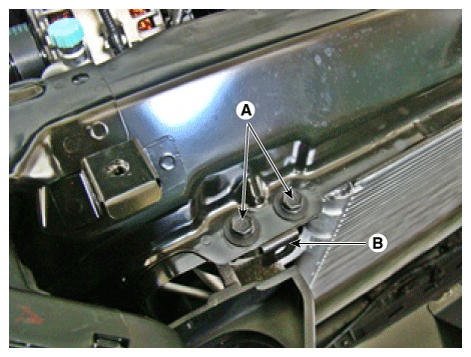

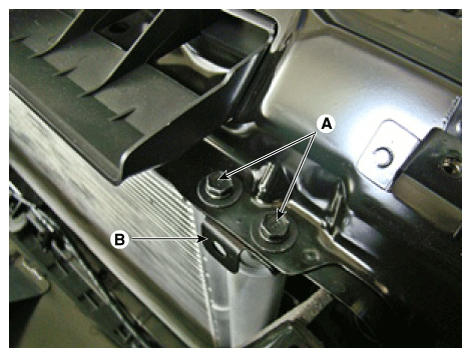

Remove the radiator upper bracket (B) loosening the radiator mounting bolts (A).

Fig 4: Radiator Upper Bracket And Radiator Mounting Bolts (1 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 5: Radiator Upper Bracket And Radiator Mounting Bolts (2 Of 2)
Courtesy of KIA MOTORS AMERICA, INC.

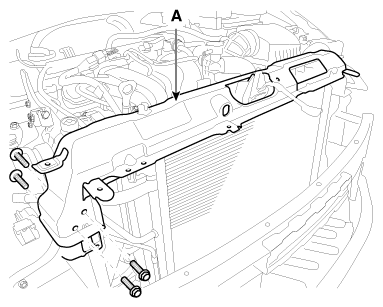

Loosen the mounting bolts and then remove the radiator upper bracket (A).

Fig 6: Radiator Upper Bracket
Courtesy of KIA MOTORS AMERICA, INC.

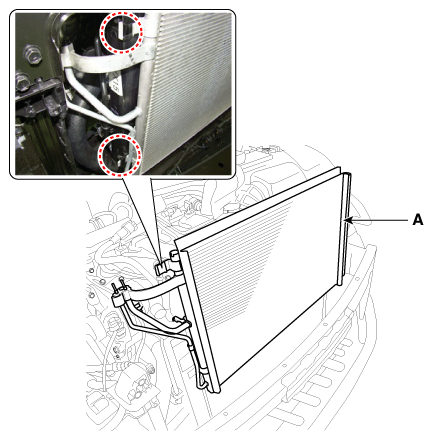

Remove the condenser (A) from radiator.

Fig 7: Condenser Tabs Connecting To Radiator
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
- If you're installing a new condenser, add refrigerant oil ND-OIL8.
- Replace the O-rings with new ones at each fitting, and apply a thin coat of refrigerant oil before installing them. Be sure to use the right O-rings for R-134a to avoid leakage.
- Be careful not to damage the radiator and condenser fins when installing the condenser.
- Be sure to install the lower mount cushions of condenser securely into the holes.
- Charge the system, and test its performance.
