Circuit Diagram

WARNING: This page is about a different variant/trim than selected.

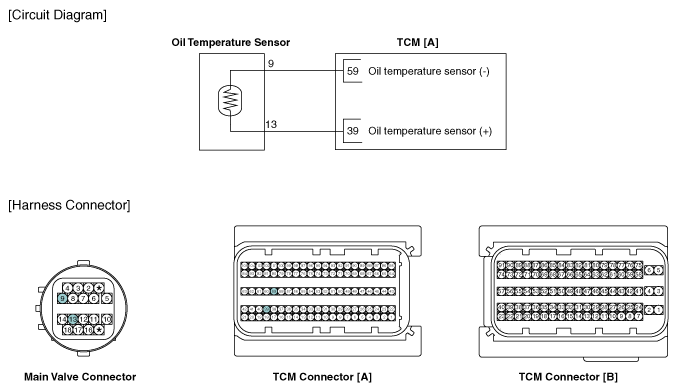

Fig 1: Oil Temperature Sensor Circuit Diagram And Connector End View
G12163244Courtesy of KIA MOTORS AMERICA, INC.
