Monitor KDS/GDS Data

WARNING: This page is about a different car, the 2017 Kia Niro. However, it is still accessible from the selected car via links, so may be relevant.
Inspection Condition Inspection Procedure Reference
  1. Ignition "ON", engine "OFF"
  2. No occupant on the passenger seat
  1. Connect KDS/GDS to Data Link Connector (DLC).
  2. Monitor parameters in "Current Data" with KDS/GDS.
 Fig 1
  1. Ignition "ON", engine "OFF"
  2. Occupant on the passenger seat
 Fig 2

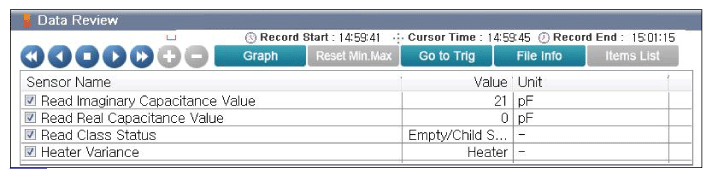

Fig 1: Screen Display - No Occupant Or Child On Passenger Seat
G12338441Courtesy of KIA MOTORS AMERICA, INC.

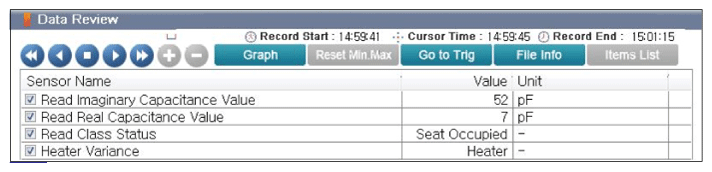

Fig 2: Screen Display - Occupant On Passenger Seat
G12338442Courtesy of KIA MOTORS AMERICA, INC.
Good
No Good
