Repair Procedures: Disassembly

Using the special tool (09546-26000), compress the coil spring (A).
Tightening torque:

58.3 - 73.5 N.m (6.0 - 7.5 kgf.m, 43.4 - 54.2 lb.ft)

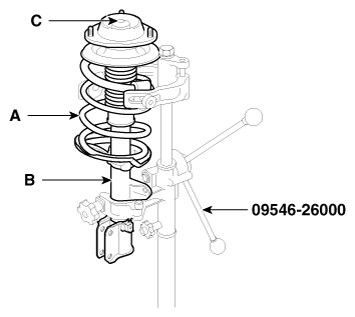

Fig 1: Compressing Coil Spring Using Special Tool (09546-26000)
Courtesy of KIA MOTORS AMERICA, INC.
Remove the self-locking nut (C) from the strut assembly (B).
Remove the insulator, spring seat, coil spring and dust cover from the strut assembly.
Reassembly is the reverse of the disassembly.
