Components And Components Location: Components

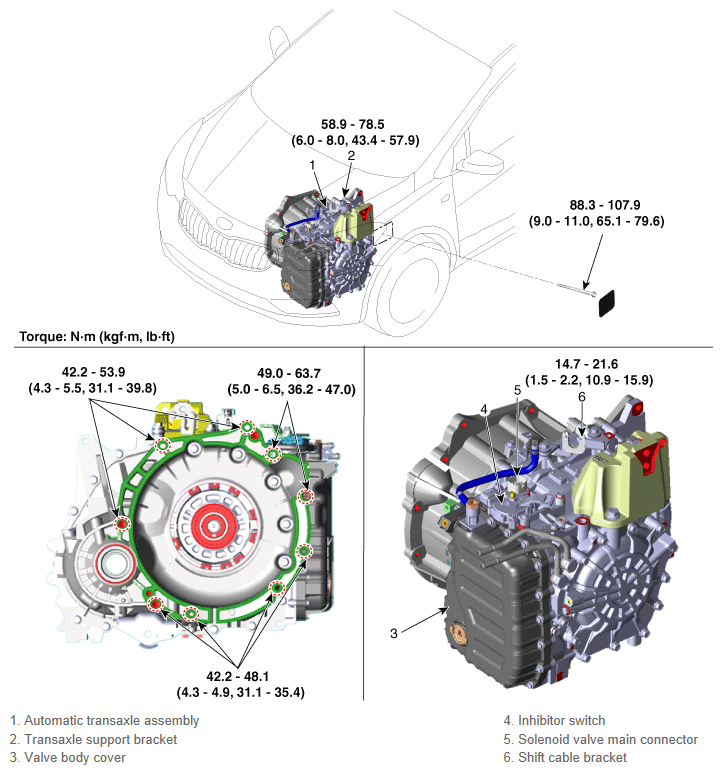

Fig 1: Automatic Transaxle System Components With Torque Specification
G12163303Courtesy of KIA MOTORS AMERICA, INC.
